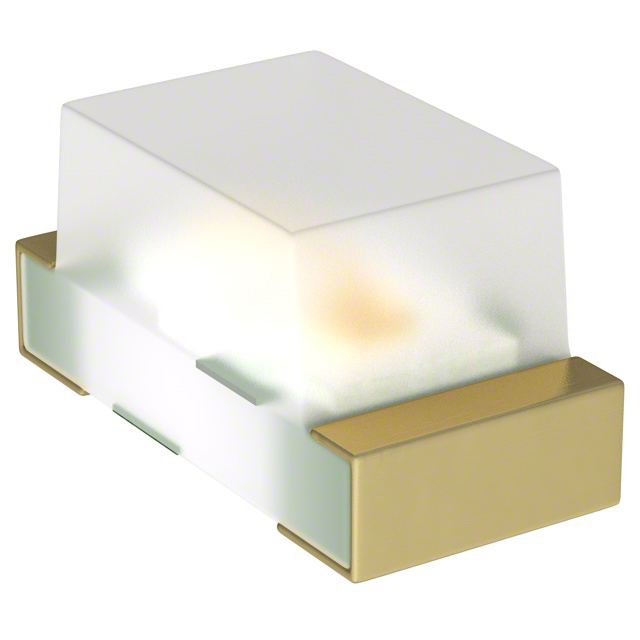

PT19-21C/L41/TR8

Manufacturer :

Everlight Electronics

Product Category :

Optical Sensors - Phototransistors

HTS Code :

8541.40.70.80

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Case Code (Imperial) :

0603

Mounting Type :

Surface Mount

Package / Case :

0603 (1608 Metric)

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Orientation :

Top View

Rise Time :

15μs

Wavelength :

940nm

Packaging :

Tape and Reel (TR)

Number of Pins :

2

Max Collector Current :

20mA

Fall Time (Typ) :

15 µs

Polarity :

NPN

Pbfree Code :

yes

Lens Style :

Flat

Max Breakdown Voltage :

30V

Light Current-Nom :

0.6mA

Published :

2005

Collector Emitter Saturation Voltage :

400mV

Collector Emitter Voltage (VCEO) :

30V

Dark Current :

100nA

Operating Temperature :

-25°C~85°C TA

Max Power Dissipation :

75mW

Number of Functions :

1

Factory Lead Time :

20 Weeks

Power - Max :

75mW

Optoelectronic Device Type :

PHOTO TRANSISTOR

Mount :

Surface Mount

Case Code (Metric) :

1608

Shape :

RECTANGULAR

Configuration :

Single

Lens Color :

Clear

Collector Emitter Breakdown Voltage :

30V

Infrared Range :

yes
