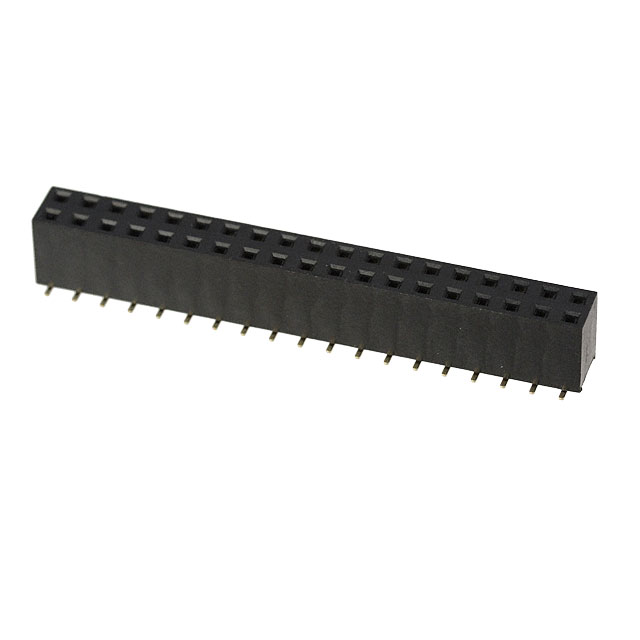

PPPC192KFMS
Or copy the link below:
- Mfr.Part #
- PPPC192KFMS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 38POS 0.1 GOLD SMD
- Stock
- 41,929
- In Stock ：
- 41,929
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Length :
- 48.8mm
- Reliability :
- COMMERCIAL
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated :
- 250V
- Mating Contact Pitch :
- 0.1 inch
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- Surface Mount
- Reference Standard :
- UL
- Number of Positions :
- 38
- Style :
- Board to Board
- Mount :
- Surface Mount
- Operating Temperature :
- -40°C~125°C
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Lead Free :
- Contains Lead
- Current Rating (Amps) :
- 3A
- Number of Rows :
- 2
- RoHS Status :
- Non-RoHS Compliant
- Body Breadth :
- 0.197 inch
- Number of Conductors :
- ONE
- Contact Type :
- Female Socket
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- Polarization Key :
- POLARIZED HOUSING
- Width :
- 5mm
- Packaging :
- Bulk
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Housing Material :
- Plastic
- Fastening Type :
- Push-Pull
- Total Number of Contacts :
- 38
- Published :
- 2004
- Number Of PCB Rows :
- 2
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Material :
- Polyester
- Contact Shape :
- Square
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Mating :
- Flash
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 7.1mm
- Insulation Height :
- 0.299 7.60mm
- Datasheets
- PPPC192KFMS
PPPC192KFMS Documents
2 Rows Header Solder Phosphor Bronze Surface Mount Bulk Gold Polyester 38 Positions Female Socket
PPPC192KFMS Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Bulk.There is a Surface Mount mount on the part.This device operates at a temperature of -40°C~125°C.
PPPC192KFMS Features
PPPC192KFMS Applications
There are a lot of Sullins Connector Solutions
PPPC192KFMS Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
