PLB3G020010

Share

Or copy the link below:

Mfr.Part #
PLB3G020010
Manufacturer
ITT Cannon
Package / Case
Datasheet
Download
Description
CONN RCPT FMALE 10POS GOLD SLDR
Stock
16
In Stock :
16

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
Circular Connector Assemblies
Ratings :
IP50
Packaging :
Bulk
HTS Code :
8536.69.40.20
Mount :
Panel, Through Hole
IP Rating :
IP50
Product Type :
Circular Push Pull Connectors
Primary Material :
Plastic
Insert Material :
Polyetheretherketone (PEEK)
Shell Finish :
-
Contact Finish Thickness - Mating :
20.0μin 0.51μm
Fastening Type :
Latch Lock, Push-Pull
Product Category :
Circular Push Pull Connectors
Voltage Rating :
-
Shell Size - Insert :
-
Material Flammability Rating :
-
ECCN Code :
EAR99
RoHS Status :
RoHS Compliant
Brand :
ITT Cannon
Option :
GENERAL PURPOSE
Backshell Type :
Solid
Ingress Protection :
IP50 - Dust Protected
Termination Style :
Solder
Moisture Sensitivity Level (MSL) :
Not Applicable
Current Rating (Amps) :
3A
Backshell Material, Plating :
-
Total Number of Contacts :
10
Number of Positions :
10
Subcategory :
Circular Connectors
Shell Size, MIL :
-
MIL Conformance :
No
Shell Material :
Polysulfone (PSU)
Product :
Connectors
Empty Shell :
No
Features :
-
Mounting Feature :
Bulkhead - Front or Rear Side Nut
Operating Temperature :
-50°C~150°C
Cable Opening :
-
Applications :
Industrial, Medical, Testing Equipment and Measurement
Orientation :
Contact Plating :
Gold
Published :
2016
Contact Finish - Mating :
Gold
Package :
Bulk
Mounting Type :
Panel Mount, Through Hole, Right Angle
Coupling Type :
Snap
Mounting Style :
CABLE
Termination :
Solder
RoHS :
Details
Connector Type :
Receptacle, Female Sockets
Number of Contacts :
10 Contact
DIN Conformance :
No
Shielding :
Unshielded
Contact Gender :
Socket (Female)
Product Status :
Active
Factory Lead Time :
8 Weeks
Series :
PL
Manufacturer :
ITT Cannon
Wire Gauge :
20 AWG
Filter Feature :
No
Base Product Number :
PLB3G
Contact Material :
COPPER ALLOY
Color :
Black, Gray
IEC Conformance :
No
Current Rating :
3A
Mixed Contacts :
No
Introducing Circular Connector Assemblies ITT Cannon PLB3G020010 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-50°C~150°C, Mounting Type:Panel Mount, Through Hole, Right Angle, PLB3G020010 pinout, PLB3G020010 datasheet PDF, PLB3G020010 amp .Beyond Circular Connector Assemblies ITT Cannon PLB3G020010 ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

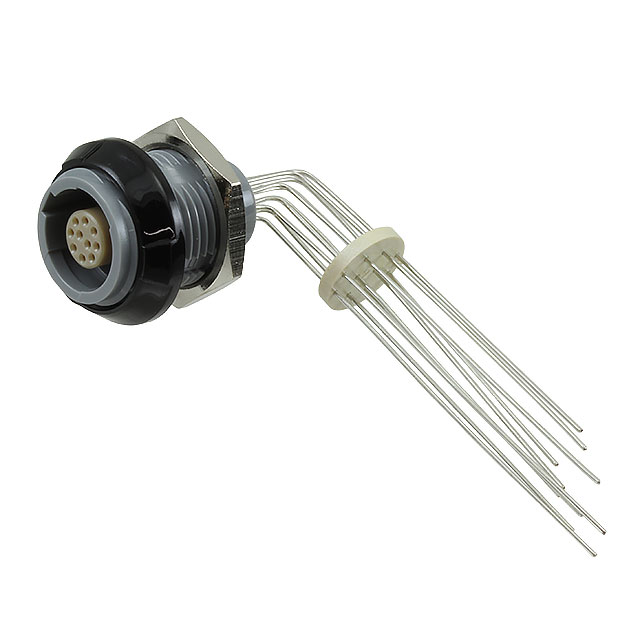

ITT Cannon PLB3G020010


Receptacle, Female Sockets Polysulfone (PSU) Panel Mount, Through Hole, Right Angle 10 Positions Solder Gold - Bulk 0° Latch Lock, Push-Pull

PLB3G020010 Overview


It comes in Receptacle, Female Sockets packaging.The device's mounting type is Panel Mount, Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the PL Series of products.The part is mounted by Panel, Through Hole.The device runs in -50°C~150°C Operating Temperature.

PLB3G020010 Features


PL series


PLB3G020010 Applications


There are a lot of ITT Cannon, LLC
PLB3G020010 Circular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
