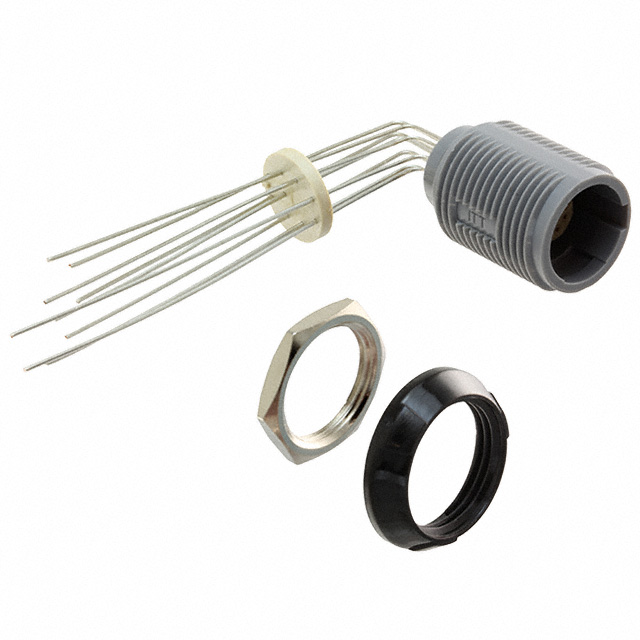

PLB3G020009
Or copy the link below:
- Mfr.Part #
- PLB3G020009
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 9POS GOLD SOLDER
- Stock
- 16,392
- In Stock ：
- 16,392
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Circular Connector Assemblies
- Connector Type :
- Receptacle, Female Sockets
- Option :
- GENERAL PURPOSE
- Mounting Feature :
- Bulkhead - Front or Rear Side Nut
- Subcategory :
- Circular Connectors
- Number of Positions :
- 9
- Mixed Contacts :
- No
- Shielding :
- Unshielded
- Termination Style :
- Solder
- Operating Temperature :
- -50°C~150°C
- Published :
- 2016
- Ratings :
- IP50
- Total Number of Contacts :
- 9
- Product Type :
- Circular Push Pull Connectors
- Brand :
- ITT Cannon
- RoHS :
- Details
- Applications :
- Industrial, Medical, Testing Equipment and Measurement
- Wire Gauge :
- 20 AWG
- Backshell Material, Plating :
- -
- Shell Finish :
- -
- Shell Size - Insert :
- -
- Contact Plating :
- Gold
- Mount :
- Panel, Through Hole
- Backshell Type :
- Solid
- Voltage Rating :
- -
- Cable Opening :
- -
- Packaging :
- Bulk
- Filter Feature :
- No
- Primary Material :
- Plastic
- Current Rating (Amps) :
- 3A
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Color :
- Black, Gray
- Series :
- PL
- IEC Conformance :
- No
- Orientation :
- 0°
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- -
- Product :
- Connectors
- Contact Finish Thickness - Mating :
- 20.0μin 0.51μm
- Contact Gender :
- Socket (Female)
- MIL Conformance :
- No
- Number of Contacts :
- 9 Contact
- Fastening Type :
- Latch Lock, Push-Pull
- Manufacturer :
- ITT Cannon
- Features :
- -
- Empty Shell :
- No
- Product Status :
- Active
- Package :
- Bulk
- Shell Material :
- Polysulfone (PSU)
- IP Rating :
- IP50
- Termination :
- Solder
- Insert Material :
- Polyetheretherketone (PEEK)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Base Product Number :
- PLB3G
- Factory Lead Time :
- 8 Weeks
- Contact Material :
- COPPER ALLOY
- Current Rating :
- 3A
- Coupling Type :
- Snap
- Shell Size, MIL :
- -
- Product Category :
- Circular Push Pull Connectors
- Mounting Style :
- CABLE
- Contact Finish - Mating :
- Gold
- Ingress Protection :
- IP50 - Dust Protected
- DIN Conformance :
- No
- Datasheets
- PLB3G020009
PLB3G020009 Documents
Receptacle, Female Sockets Polysulfone (PSU) Panel Mount, Through Hole, Right Angle 9 Positions Solder Gold - Bulk 0° Latch Lock, Push-Pull
PLB3G020009 Overview
It comes in Receptacle, Female Sockets packaging.The device's mounting type is Panel Mount, Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the PL Series of products.The part is mounted by Panel, Through Hole.The device runs in -50°C~150°C Operating Temperature.
PLB3G020009 Features
PL series
PLB3G020009 Applications
There are a lot of ITT Cannon, LLC
PLB3G020009 Circular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
