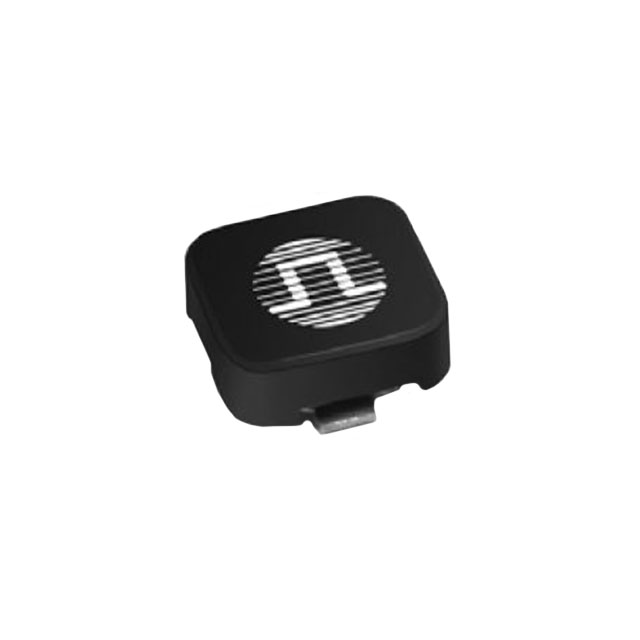

PF0601.124NLT

Manufacturer :

Pulse Electronics

Product Category :

Fixed Inductors

Frequency - Self Resonant :

8MHz

Inductance Frequency - Test :

100kHz

Inductor Application :

POWER INDUCTOR

Rated Current-Max :

0.62A

Package / Case :

Nonstandard

Features :

--

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8504.50.80.00

RoHS Status :

RoHS Compliant

Shielding :

yes

Operating Temperature :

-40°C~130°C

Product Status :

Active

Series :

PF0601NL

JESD-609 Code :

e3

Terminal Shape :

WRAPAROUND

Test Frequency :

100kHz

Mount :

Surface Mount

Current Rating :

310mA

Current - Saturation (Isat) :

310mA

Current - Saturation :

310mA

Supplier Device Package :

--

DC Resistance (DCR) :

1.25Ohm Max

Q @ Freq :

--

Package :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Terminal Placement :

DUAL ENDED

Case/Size Code :

2726

Packing Method :

TR

Height - Seated (Max) :

0.118 (3.00mm)

Material - Core :

--

Ratings :

--

Height Seated (Max) :

0.118 3.00mm

Number of Terminations :

2

Size / Dimension :

0.272Lx0.256W 6.90mmx6.50mm

Tolerance :

±20%

Inductance :

120μH

Packaging :

Tape and Reel (TR)

Height :

2.9972mm

ECCN Code :

EAR99

Type :

Wirewound

Current Rating (Amps) :

310 mA

Shape/Size Description :

RECTANGULAR PACKAGE

Number of Functions :

1
