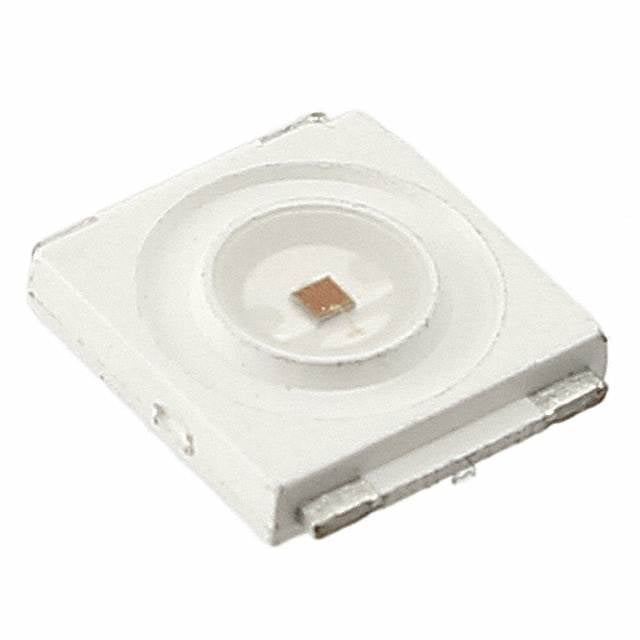

OVSPRBCR4

Manufacturer :

TT Electronics

Product Category :

Reverse Voltage :

12V

Wavelength :

625nm 620nm ~ 630nm

Dominant Wavelength :

625 nm

Illumination Color :

Red

Current - Test :

400mA

REACH SVHC :

Unknown

Lens Color :

Clear

Number of Pins :

2

Length :

7mm

Depth :

6mm

Max Current Rating :

400mA

Color :

Red

Min Operating Temperature :

-40°C

Factory Lead Time :

14 Weeks

Nominal Supply Current :

400mA

Voltage - Forward (Vf) (Typ) :

2.5V

Peak Pulse Current :

500mA

Supplier Device Package :

SMD

Forward Voltage :

2.5V

Power Dissipation :

1.2W

Package / Case :

2424 (6060 Metric)

Packaging :

Tape and Reel (TR)

Lens Style :

Colorless, Diffused

Temperature - Test :

25°C

Luminous Intensity :

26 mcd

Forward Current :

400mA

Lead Free :

Lead Free

Thermal Resistance of Package :

20°C/W

Max Operating Temperature :

100°C

Flux @ Current/Temperature - Test :

44lm 33lm~54lm

Mount :

Surface Mount

Current - Max :

400mA

Power Rating :

1W

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Max Power Dissipation :

1.2W

Size / Dimension :

0.236Lx0.236W 6.00mmx6.00mm

Width :

6mm

Lumens/Watt @ Current - Test :

44 lm/W

Height Seated (Max) :

0.059 1.50mm

Number of Elements :

1

RoHS Status :

RoHS Compliant

Luminous Flux :

42 lm

Mounting Type :

Surface Mount

Viewing Angle :

120°

Published :

2008

Voltage - Rated DC :

2.5V
