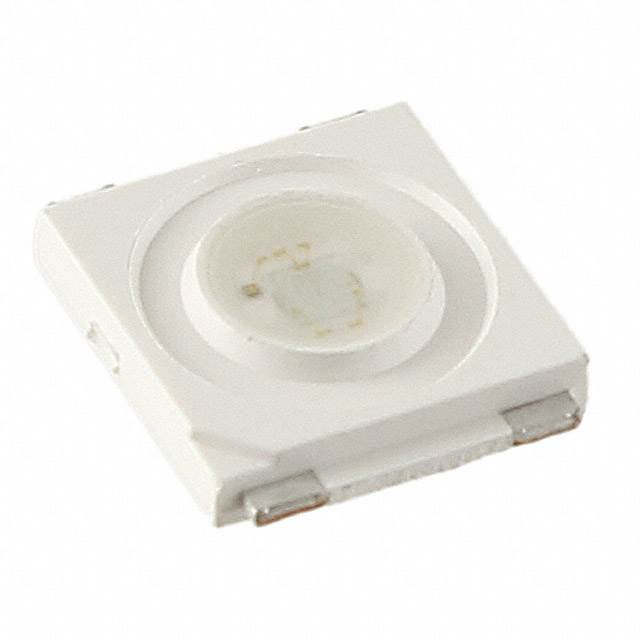

OVSPBBCR4

Manufacturer :

TT Electronics

Product Category :

Number of Pins :

2

Length :

7mm

Voltage - Rated DC :

3.6V

Lumens/Watt @ Current - Test :

16 lm/W

Lead Free :

Lead Free

Lens Color :

Clear

Current - Test :

350mA

Min Operating Temperature :

-40°C

Flux @ Current/Temperature - Test :

20lm 13lm~27lm

Color :

Blue

Nominal Supply Current :

350mA

Width :

6mm

Thermal Resistance of Package :

20°C/W

Number of Elements :

1

Max Current Rating :

350mA

Power Rating :

1W

Illumination Color :

Blue

Wavelength :

468nm 460nm ~ 476nm

Moisture Sensitivity Level (MSL) :

5A (24 Hours)

Published :

2007

Luminous Flux :

20 lm

Max Power Dissipation :

1.2W

Forward Voltage :

3.6V

Mounting Type :

Surface Mount

Max Operating Temperature :

100°C

Current - Max :

350mA

Size / Dimension :

0.236Lx0.236W 6.00mmx6.00mm

Temperature - Test :

25°C

Lens Style :

Colorless, Diffused

Forward Current :

350mA

Package / Case :

2424 (6060 Metric)

Mount :

Surface Mount

Luminous Intensity :

3.4 cd

Peak Pulse Current :

1A

Voltage - Forward (Vf) (Typ) :

3.6V

Viewing Angle :

120°

REACH SVHC :

Unknown

Height Seated (Max) :

0.059 1.50mm

Depth :

6mm

Dominant Wavelength :

470 nm

RoHS Status :

RoHS Compliant

Power Dissipation :

1.2W

Packaging :

Tape and Reel (TR)

Supplier Device Package :

SMD
