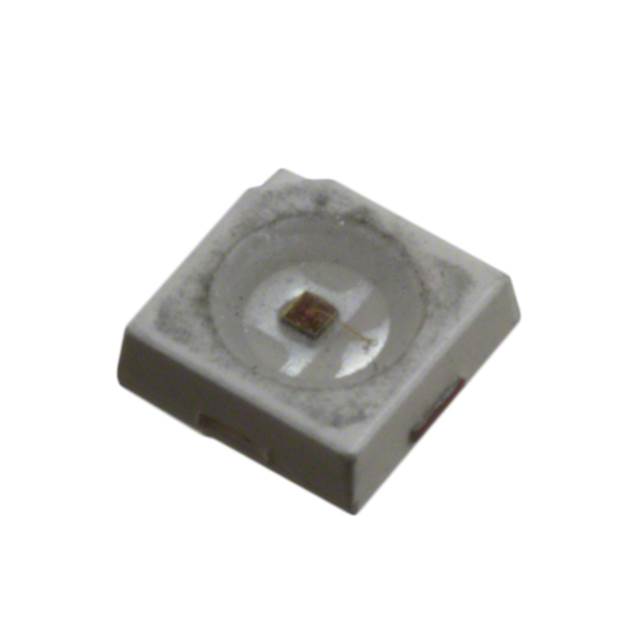

OVS5MRBCR4

Manufacturer :

TT Electronics

Product Category :

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Mounting Type :

Surface Mount

Length :

3.5mm

Lens Style :

Round with Flat Top

Power Dissipation :

750mW

Size / Dimension :

3.50mm Lx3.50mm W

Lens Transparency :

Clear

Illumination Color :

Red

Color :

Red

Package / Case :

2-SMD, No Lead

Max Power Dissipation :

330mW

Mount :

Surface Mount

REACH SVHC :

No SVHC

Wavelength :

625 nm

Height (Max) :

1.40mm

Packaging :

Tape and Reel (TR)

Millicandela Rating :

7150mcd

Wavelength - Dominant :

625nm

Voltage - Forward (Vf) (Typ) :

2.2V

Power Rating :

500mW

RoHS Status :

RoHS Compliant

Configuration :

Standard

Lens Color :

Colorless

Lead Free :

Lead Free

Supplier Device Package :

2-SMD

Factory Lead Time :

8 Weeks

Luminous Intensity :

4 cd

Current - Test :

140mA

Max Current Rating :

200mA

Reverse Voltage :

12V

Forward Voltage :

2.2V

Depth :

3.5mm

Min Operating Temperature :

-40°C

Lens Size :

2.60mm Dia

Viewing Angle :

120°

Number of Pins :

2

Number of Elements :

1

Published :

2011

Max Operating Temperature :

100°C

Forward Current :

200mA
