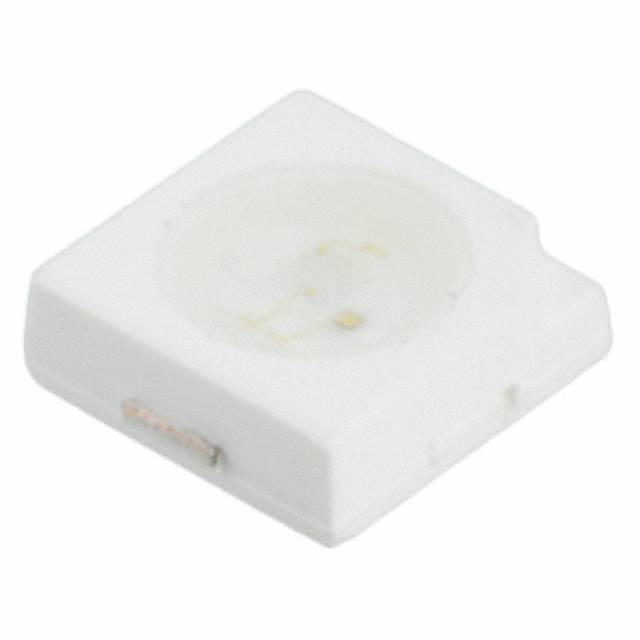

OVS5MBBCR4

Manufacturer :

TT Electronics

Product Category :

Length :

3.5mm

Mount :

Surface Mount

Supplier Device Package :

SMD

Luminous Flux :

6 lm

Max Junction Temperature (Tj) :

125°C

REACH SVHC :

No SVHC

Max Operating Temperature :

100°C

Forward Voltage :

3.4V

RoHS Status :

RoHS Compliant

Forward Current :

180mA

Illumination Color :

Blue

Height :

1.4mm

Current - Max :

180mA

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Min Operating Temperature :

-40°C

Factory Lead Time :

10 Weeks

Power Rating :

500mW

Depth :

3.5mm

Wavelength :

465nm 460nm ~ 470nm

Packaging :

Tape and Reel (TR)

Max Current Rating :

180mA

Manufacturer Package Identifier :

OVS5MBBCR4

Height Seated (Max) :

0.055 1.40mm

Published :

2011

Voltage - Forward (Vf) (Typ) :

3.4V

Flux @ Current/Temperature - Test :

7lm 5lm~8lm

Max Power Dissipation :

480mW

Power Dissipation :

510mW

Thermal Resistance of Package :

5°C/W

Color :

Blue

Current - Test :

150mA

Mounting Type :

Surface Mount

Lens Style :

Clear, Colorless, Diffused

Temperature - Test :

25°C

Lead Free :

Lead Free

Package / Case :

1414 (3535 Metric)

Number of Pins :

2

Size / Dimension :

0.138Lx0.138W 3.50mmx3.50mm

Viewing Angle :

120°

Lumens/Watt @ Current - Test :

14 lm/W

Number of Elements :

1

Dominant Wavelength :

465 nm
