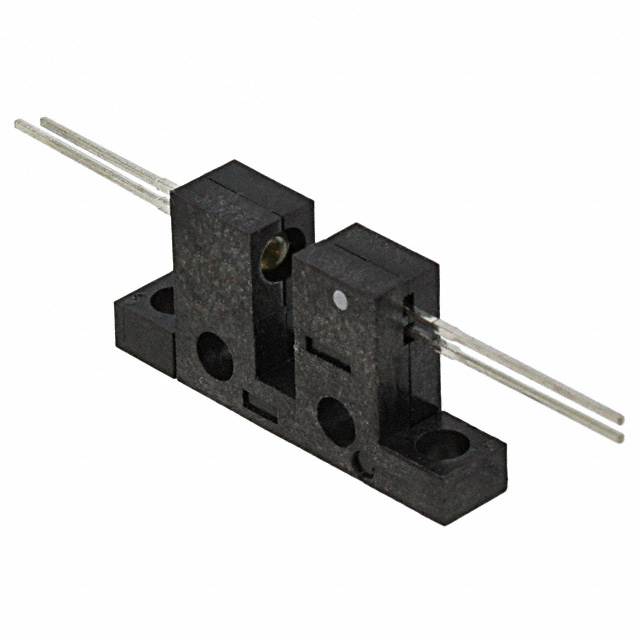

OPB806

Manufacturer :

TT Electronics

Product Category :

Optical Sensors - Photointerrupters - Slot Type - Transistor Output

Output Voltage :

30V

Width :

26.42mm

Forward Current :

20mA

Max Operating Temperature :

85°C

Reverse Breakdown Voltage :

2V

Mount :

Screw, Through Hole

Type :

Unamplified

Operating Supply Voltage :

1.7V

Reverse Voltage (DC) :

2V

Packaging :

Bulk

Voltage - Collector Emitter Breakdown (Max) :

30V

Input Current :

20mA

Lead Free :

Lead Free

Collector Emitter Voltage (VCEO) :

30V

Output Configuration :

Phototransistor

Package / Case :

PCB Mount

Collector Emitter Breakdown Voltage :

30V

Power Dissipation :

100mW

Factory Lead Time :

12 Weeks

Wavelength :

935 nm

Number of Pins :

4

Max Breakdown Voltage :

30V

Touchscreen :

Infrared (IR)

Mounting Type :

Through Hole

Sensing Distance :

0.125 (3.18mm)

REACH SVHC :

No SVHC

Current - DC Forward (If) (Max) :

50mA

RoHS Status :

RoHS Compliant

Published :

2006

Sensing Method :

Through-Beam

Operating Temperature :

-40°C~85°C

Forward Voltage :

1.7V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Wavelength :

935 nm

Min Operating Temperature :

-40°C

Number of Elements :

1
