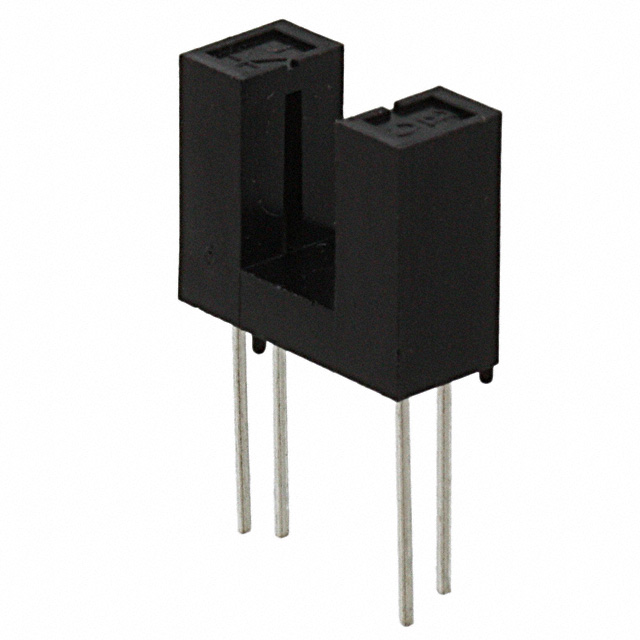

LTH-301-05
Or copy the link below:
- Mfr.Part #
- LTH-301-05
- Manufacturer
- LITEON
- Package / Case
- Module, PC Pins, Slot Type
- Datasheet
- Download
- Description
- SENSOR OPT SLOT PHOTOTRANS MODUL
- Stock
- 2,000
- In Stock ：
- 2,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LITEON
- Product Category :
- Optical Sensors - Photointerrupters - Slot Type - Transistor Output
- Type :
- Unamplified
- On-state Collector Current-Nom :
- 0.5mA
- Collector Emitter Voltage (VCEO) :
- 30V
- Number of Elements :
- 1
- On-State Current-Max :
- 0.0005A
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Package / Case :
- Module, PC Pins, Slot Type
- Reverse Breakdown Voltage :
- 5V
- Operating Temperature :
- -25°C~85°C
- Rise Time :
- 15μs
- Fall Time (Typ) :
- 20 μs
- Number of Pins :
- 4
- Factory Lead Time :
- 12 Weeks
- Sensing Method :
- Through-Beam
- Slot Width-Nom :
- 6mm
- Collector Emitter Breakdown Voltage :
- 30V
- Forward Current :
- 60mA
- Published :
- 2003
- Reach Compliance Code :
- Unknown
- Packaging :
- Bulk
- Response Time :
- 4μs, 4μs
- Power Dissipation :
- 100mW
- Sensing Distance :
- 0.236 (6mm)
- Mounting Type :
- Through Hole
- Number of Functions :
- 1
- Gap Size :
- 6mm
- Output Configuration :
- Phototransistor
- Max Collector Current :
- 20mA
- Datasheets
- LTH-301-05
LTH-301-05 datasheet pdf and Optical Sensors - Photointerrupters - Slot Type - Transistor Output product details from Lite-On Inc. stock available at
