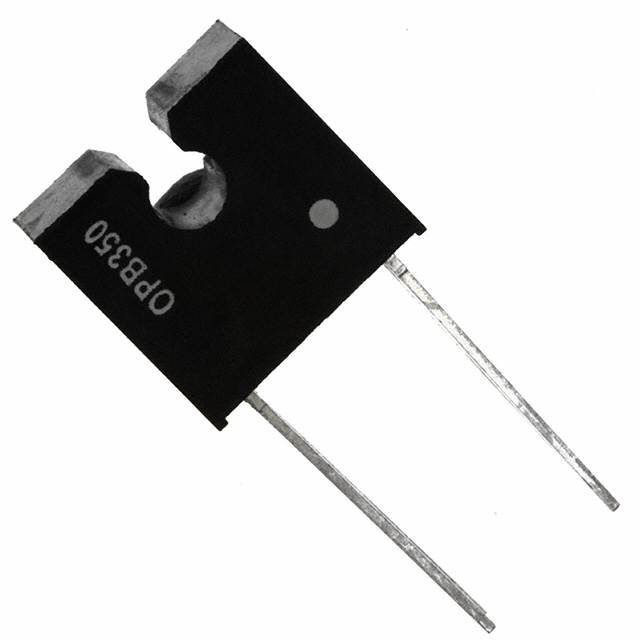

OPB350

Manufacturer :

TT Electronics

Product Category :

Optical Sensors - Photointerrupters - Slot Type - Transistor Output

Height :

10.8mm

Lead Length :

8.38mm

Sensing Method :

Liquid

Output Current :

50mA

Operating Temperature :

-40°C~85°C

Voltage - Collector Emitter Breakdown (Max) :

30V

Current - Collector (Ic) (Max) :

50mA

Radiation Hardening :

No

Factory Lead Time :

8 Weeks

Peak Wavelength :

890 nm

Min Supply Voltage (DC) :

4.75V

REACH SVHC :

Unknown

Input Current :

50mA

Output Configuration :

Phototransistor

RoHS Status :

RoHS Compliant

Max Operating Temperature :

85°C

Package / Case :

PCB Mount

Voltage - Rated DC :

30V

Power Dissipation :

100mW

Lead Pitch :

8.128mm

Packaging :

Bulk

Lead Free :

Lead Free

Number of Pins :

4

Wavelength :

890 nm

Max Power Dissipation :

100mW

Max Output Current :

6mA

Sensing Distance :

0.125 (3.18mm)

Max Supply Voltage (DC) :

5.25V

Collector Emitter Breakdown Voltage :

30V

Forward Current :

50mA

Collector Emitter Voltage (VCEO) :

30V

Max Collector Current :

50mA

Current - DC Forward (If) (Max) :

50mA

Width :

11.68mm

Published :

2007

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Breakdown Voltage :

2V

Length :

11.68mm

Number of Elements :

1

Series :

OPB350

Mount :

Screw, Through Hole

Min Operating Temperature :

-40°C
