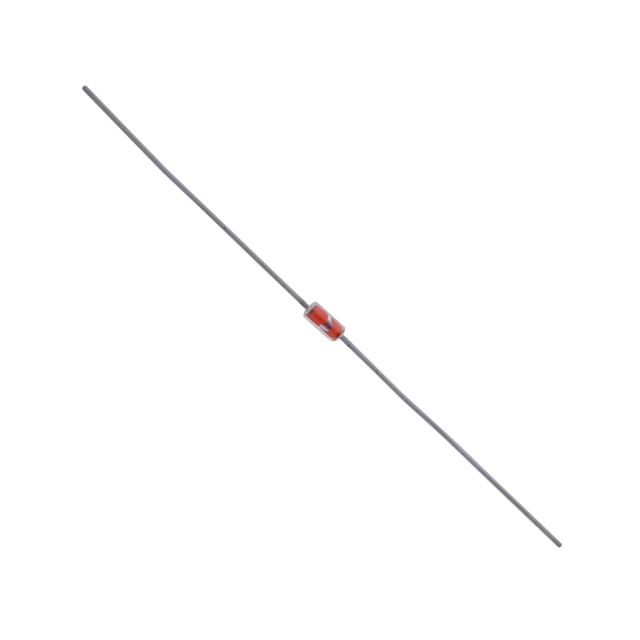

NTE6412

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - DIACs, SIDACs

Maximum Power Dissipation (mW) :

250

REACH SVHC :

Unknown

Min Operating Temperature :

-40 °C

Width :

95.25 mm

Terminal Position :

Axial

RoHS :

Compliant

Product Status :

Active

Package / Case :

Axial

Max Operating Temperature :

125 °C

Military :

No

Maximum Breakover Voltage (V) :

70

Maximum Breakover Voltage Symmetry (V) :

4

Manufacturer :

NTE Electronics

Configuration :

Single

Package Shape :

Round

Minimum Operating Temperature (°C) :

-40

Diameter :

2.73

Operating Temperature :

-40°C ~ 125°C (TJ)

Mounting :

Through Hole

Height :

6.35 mm

Case Connection :

Isolated

Terminal Form :

Wire

Repetitive Peak on State Current (A) :

1.5

Maximum Operating Temperature (°C) :

125

Supplier Device Package :

-

PCB changed :

2

Package :

Bag

Series :

-

ECCN (US) :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Breakover :

25 µA

ECCN Code :

EAR99

Qualification Status :

Not Qualified

RoHS Status :

RoHS Compliant

Package Length :

5.33(Max)

Number of Pins :

2

Current - Peak Output :

1.5 A

Number of Terminals :

2

Maximum Breakover Current (mA) :

0.025

Lead Shape :

Through Hole

Voltage - Breakover :

56 ~ 70V

Supplier Package :

DO-35

Subcategory :

DIACs

Surface Mount :

No

Reach Compliance Code :

Unknown

HTS Code :

8541.30.00.80

HTS :

8541.30.00.80

Weight :

453.59237 mg

Number of Elements :

1

JESD-30 Code :

O-PALF-W2

Trigger Device Type :

DIAC

Length :

177.8 mm

Mount :

Through Hole

Standard Package Name :

DO-204-AH

Pin Count :

2

Repetitive Peak Reverse Voltage :

6 V

Minimum Dynamic Breakback Voltage (V) :

7
