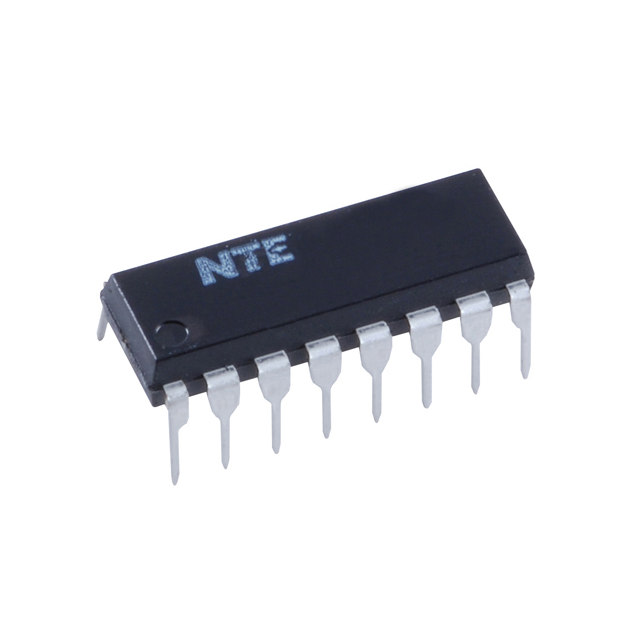

NTE4032B

Manufacturer :

NTE Electronics, Inc.

Product Category :

Specialty Logic

Width :

7.62 mm

Length :

22 mm

Temperature Grade :

Military

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Supply Voltage-Max (Vsup) :

18 V

Package :

Bag

Family :

4000/14000/40000

Technology :

CMOS

HTS Code :

8542.39.00.01

Mounting Type :

Through Hole

Number of Terminals :

16

Additional Feature :

LG_MAX

Terminal Pitch :

2.54 mm

Terminal Position :

Dual

Supplier Device Package :

16-PDIP

Manufacturer :

NTE Electronics

Supply Voltage-Min (Vsup) :

3 V

Surface Mount :

No

Package / Case :

16-DIP (0.260, 6.60mm)

Number of Functions :

3

Propagation Delay (tpd) :

650 ns

Terminal Form :

THROUGH-HOLE

Reach Compliance Code :

Unknown

Logic IC Type :

ADDER/SUBTRACTOR

Logic Type :

Logic Adder

Package Shape :

RECTANGULAR

JESD-30 Code :

R-PDIP-T16

Supply Voltage :

3V ~ 18V

Number of Bits :

3

Series :

-

Operating Temperature :

-55°C ~ 125°C

Seated Height-Max :

5.08 mm

Product Status :

Active
