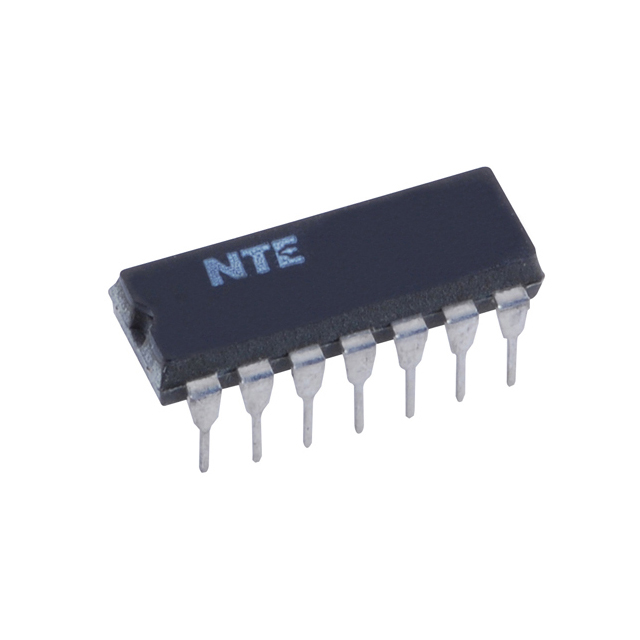

NTE40106B

Manufacturer :

NTE Electronics, Inc.

Product Category :

Gates and Inverters

Package :

Bag

Number of Terminals :

14

Number of Functions :

6

Supply Voltage-Max (Vsup) :

18 V

Logic Type :

Inverter

Width :

50.8 mm

Reach Compliance Code :

Unknown

Current - Output High, Low :

6.8mA, 6.8mA

Terminal Position :

Dual

Family :

4000/14000/40000

Number of Inputs :

1

Logic IC Type :

Inverter

Length :

76.2 mm

Number of Outputs :

1

Terminal Pitch :

2.54 mm

Logic Function :

Inverter, Schmitt Trigger

Number of Pins :

14

Min Operating Temperature :

-55 °C

Weight :

72.574779 g

RoHS :

Compliant

Package Shape :

RECTANGULAR

Package / Case :

14-DIP (0.300, 7.62mm)

Seated Height-Max :

5.08 mm

Max Propagation Delay @ V, Max CL :

120ns @ 15V, 50pF

Surface Mount :

No

Mount :

Through Hole

JESD-30 Code :

R-XDIP-T14

Number of Channels :

6

Series :

4000B

Min Supply Voltage :

3 V

Max Operating Temperature :

125 °C

Technology :

CMOS

Number of Bits :

18

Voltage - Supply :

3V ~ 18V

Operating Temperature :

-55°C ~ 125°C

Max Supply Voltage :

18 V

Features :

Schmitt Trigger

Temperature Grade :

Military

Number of Circuits :

6

Schmitt Trigger :

yes

Propagation Delay (tpd) :

280 ns

Product Status :

Active

Terminal Form :

THROUGH-HOLE

Current - Quiescent (Max) :

20 µA

Manufacturer :

NTE Electronics

Supply Voltage-Min (Vsup) :

3 V

Mounting Type :

Through Hole

Supplier Device Package :

14-DIP

Height :

6.35 mm
