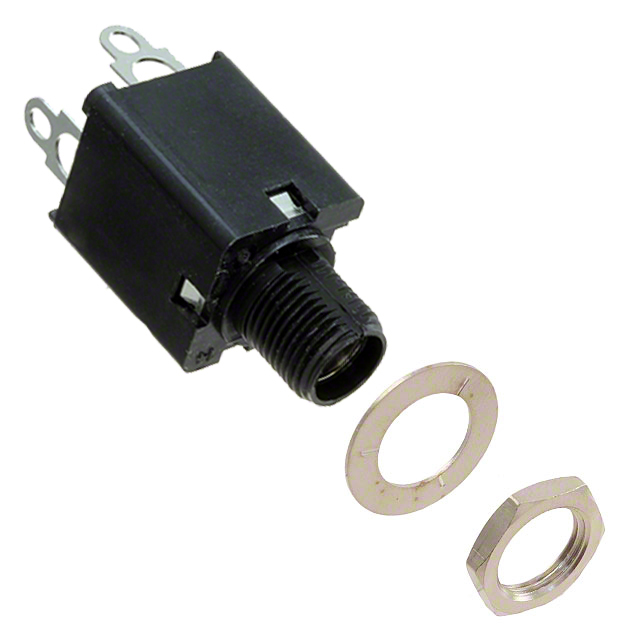

NL112BX
Or copy the link below:
- Mfr.Part #
- NL112BX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 6.35MM PNL MNT
- Stock
- 893
- In Stock ：
- 893
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Signal Lines :
- Stereo (3 Conductor, TRS)
- RoHS Status :
- ROHS3 Compliant
- Number of Ports :
- 1
- Option :
- GENERAL PURPOSE
- Contact Material - Plating :
- Tin
- Operating Temperature :
- -20°C~65°C
- Current Rating :
- 250mA
- Feature :
- Mounting Hardware, Thread Lock
- ECCN Code :
- EAR99
- Contact Material :
- Brass
- Thread Size :
- 3/8-32
- Internal Switch(s) :
- Does Not Contain Switch
- Number of Poles :
- 3
- Number of Terminations :
- 3
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Plating :
- Nickel, Tin
- Gender :
- FEMALE
- IEC Conformance :
- No
- Connector Type :
- Phone Jack
- Shielding :
- Unshielded
- Voltage - Rated :
- 48VDC
- Series :
- Hi-D® NL11
- Body Material :
- Plastic
- Orientation :
- Straight
- Body Color :
- Black
- Published :
- 2008
- MIL Conformance :
- No
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Termination :
- Solder Eyelet(s)
- REACH SVHC :
- Unknown
- Mounting Type :
- Panel Mount, Through Hole
- Actual Diameter :
- 0.250 (6.35mm)
- Panel Hole Size :
- 0.375 9.52mm
- Housing Material :
- Polyester, Glass Filled
- Industry Recognized Mating Diameter :
- 6.35mm (0.250, 1/4) - Headphone
- Length :
- 15.87mm
- Mount :
- Panel, Through Hole
- Factory Lead Time :
- 12 Weeks
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Packaging :
- Bulk
- DIN Conformance :
- No
- Datasheets
- NL112BX
