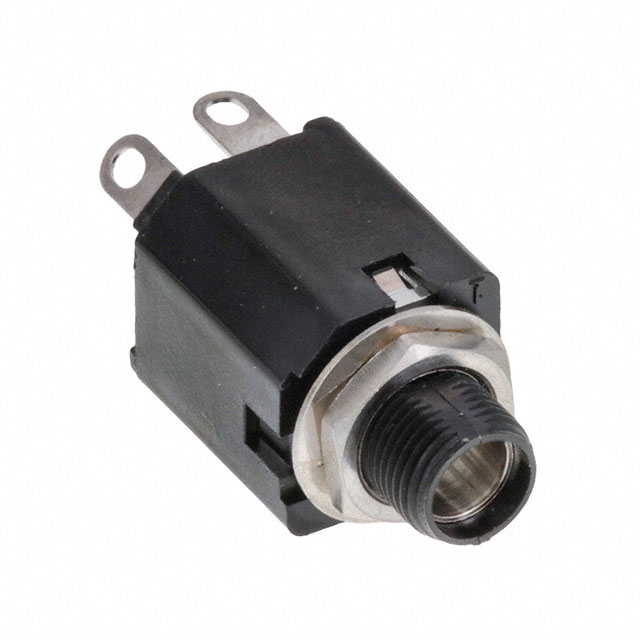

NL112AX
Or copy the link below:
- Mfr.Part #
- NL112AX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK MONO 6.35MM PNL MNT
- Stock
- 4,275
- In Stock ：
- 4,275
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Contact Plating :
- Nickel, Tin
- Number of Ports :
- 1
- Feature :
- Mounting Hardware, Thread Lock
- Operating Temperature :
- -20°C~65°C
- JESD-609 Code :
- e3
- Gender :
- FEMALE
- Published :
- 2008
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Series :
- Hi-D® NL11
- Number of Poles :
- 2
- Mounting Type :
- Panel Mount, Through Hole
- Thread Size :
- 3/8-32
- IEC Conformance :
- No
- Shielding :
- Unshielded
- Length :
- 15.87mm
- Internal Switch(s) :
- Single Switch
- Factory Lead Time :
- 12 Weeks
- Orientation :
- Straight
- Body Color :
- Black
- Termination :
- Solder Eyelet(s)
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Actual Diameter :
- 0.250 (6.35mm)
- Panel Hole Size :
- 0.375 9.52mm
- Number of Terminations :
- 2
- MIL Conformance :
- No
- DIN Conformance :
- No
- Industry Recognized Mating Diameter :
- 6.35mm (0.250, 1/4) - Headphone
- Option :
- GENERAL PURPOSE
- Connector Type :
- Phone Jack
- Housing Material :
- Polyester, Glass Filled
- Current Rating :
- 250mA
- Contact Material :
- Brass
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Mount :
- Panel, Through Hole
- Voltage - Rated :
- 48VDC
- Signal Lines :
- Mono
- Contact Material - Plating :
- Tin
- Datasheets
- NL112AX
