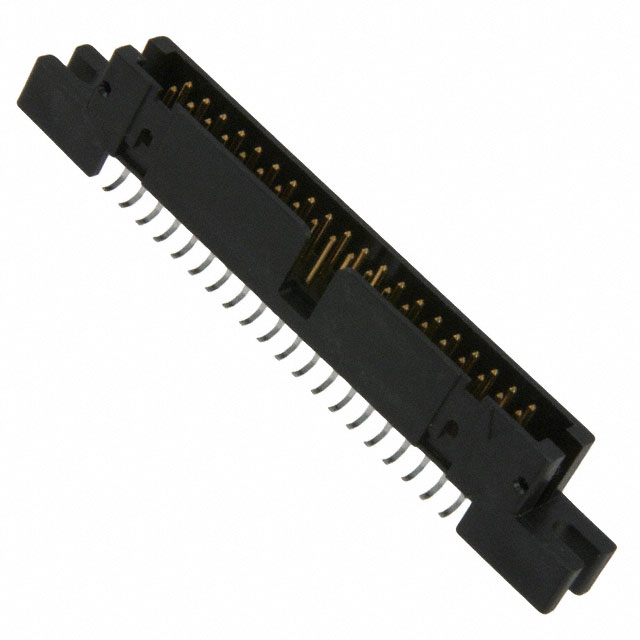

N4640-2000RB
Or copy the link below:
- Mfr.Part #
- N4640-2000RB
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 40POS 2.54MM
- Stock
- 1,793
- In Stock ：
- 1,793
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Headers, Male Pins
- Series :
- N4600
- Contact Finish - Post :
- Tin
- RoHS Status :
- RoHS Compliant
- Feature :
- Keying Slot, Mounting Flange
- Gender :
- Male
- Pitch :
- 2.54mm
- Contact Length - Mating :
- 0.243 6.17mm
- Orientation :
- Straight
- Mount :
- Surface Mount
- Contact Plating :
- Gold
- Packaging :
- Bulk
- Number of Positions :
- 40
- Number of Rows :
- 2
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- 300.0μin 7.62μm
- Number of Contacts :
- 40
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Pitch - Mating :
- 0.100 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Contact Material :
- COPPER ALLOY
- Current Rating :
- 1.25A
- Published :
- 2009
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Push-Pull
- Color :
- Black
- Shrouding :
- Shrouded - 4 Wall
- Approval Agency :
- UL
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 1.25A
- Connector Type :
- Header
- Insulation Height :
- 0.525 13.34mm
- Operating Temperature :
- -55°C~105°C
- Mounting Type :
- Surface Mount
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Datasheets
- N4640-2000RB
N4600 Series 2-Row Header Solder Copper Alloy Bulk Surface Mount Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 40-Position Board to Cable/Wire 0.525 13.34mm Height
N4640-2000RB Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the N4600 Series, it can be found in this category.With its Keying Slot, Mounting Flange feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -55°C~105°C Operating Temperature.
N4640-2000RB Features
N4600 series
N4640-2000RB Applications
There are a lot of 3M
N4640-2000RB Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
