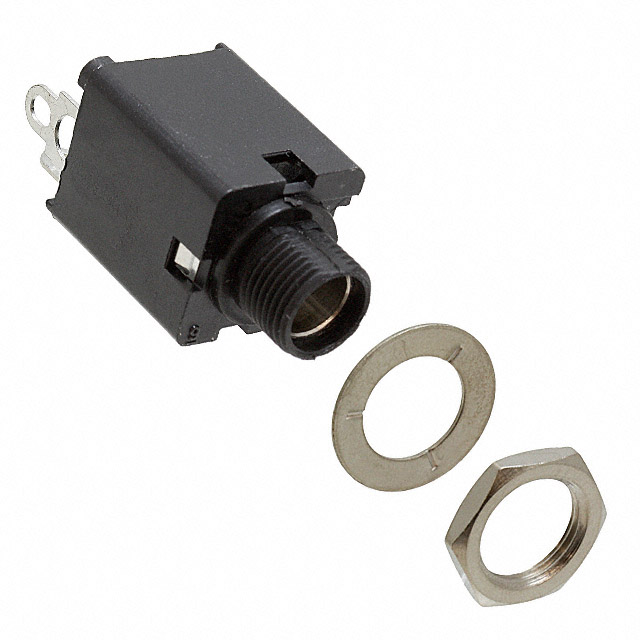

N112AX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Connector Type :

Phone Jack

Thread Size :

3/8-32

Actual Diameter :

0.250 (6.35mm)

Signal Lines :

Mono

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Mounting Type :

Panel Mount, Through Hole

Mount :

Chassis Mount, Panel, Through Hole

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Nickel

Series :

Hi-D® N11

Termination :

Solder Eyelet(s)

Number of Terminations :

2

Number of Ports :

1

Length :

15.87mm

Packaging :

Bulk

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Orientation :

Straight

Current Rating :

250mA

Internal Switch(s) :

Single Switch

Moisture Sensitivity Level (MSL) :

Not Applicable

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Option :

GENERAL PURPOSE

Housing Color :

Black

IEC Conformance :

No

REACH SVHC :

Unknown

Gender :

FEMALE

Body Material :

Plastic

DIN Conformance :

No

Panel Hole Size :

0.375 9.52mm

ECCN Code :

EAR99

Number of Poles :

2

Shielding :

Unshielded

Contact Material :

Brass

Feature :

Mounting Hardware, Thread Lock

Housing Material :

Polyester, Glass Filled

Operating Temperature :

-20°C~65°C

Factory Lead Time :

8 Weeks

MIL Conformance :

No

Voltage - Rated :

48VDC

Published :

2008

Contact Material - Plating :

Tin

Number of Contacts :

3
