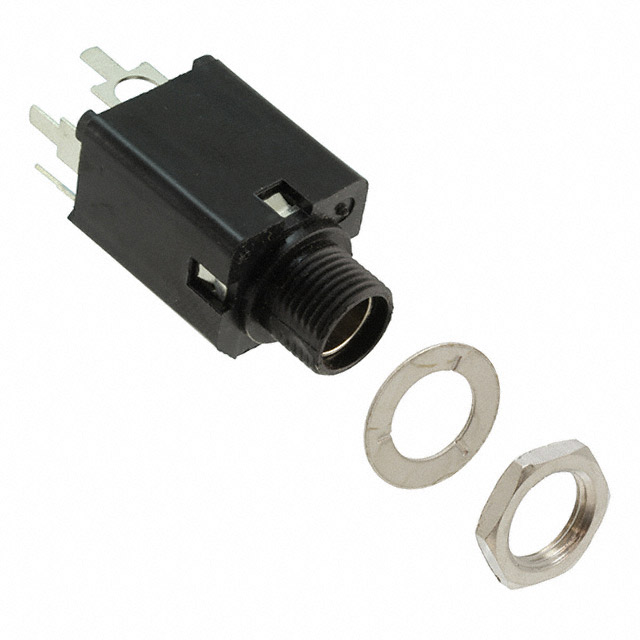

N112APCX
Or copy the link below:
- Mfr.Part #
- N112APCX
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK MONO 6.35MM PNL MNT
- Stock
- 1,999
- In Stock ：
- 1,999
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Voltage - Rated :
- 48VDC
- Factory Lead Time :
- 8 Weeks
- Orientation :
- Straight
- Number of Poles :
- 2
- Contact Material :
- Brass
- Option :
- GENERAL PURPOSE
- Contact Material - Plating :
- Tin
- Signal Lines :
- Mono
- Mounting Type :
- Panel Mount, Through Hole
- Packaging :
- Bulk
- MIL Conformance :
- No
- IEC Conformance :
- No
- Actual Diameter :
- 0.250 (6.35mm)
- Published :
- 2008
- Number of Ports :
- 1
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Connector Type :
- Phone Jack
- Mount :
- Panel, Through Hole
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Panel Hole Size :
- 0.375 9.52mm
- Contact Finish - Mating :
- Nickel
- Current Rating :
- 250mA
- Housing Color :
- Black
- Operating Temperature :
- -20°C~65°C
- Industry Recognized Mating Diameter :
- 6.35mm (0.250, 1/4) - Headphone
- Length :
- 15.87mm
- Shielding :
- Unshielded
- Housing Material :
- Polyester, Glass Filled
- Depth :
- 27.64mm
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Gender :
- FEMALE
- Series :
- Hi-D® N11
- Thread Size :
- 3/8-32
- Number of Terminations :
- 5
- Feature :
- Mounting Hardware, Thread Lock
- Internal Switch(s) :
- Single Switch
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- DIN Conformance :
- No
- Datasheets
- N112APCX
