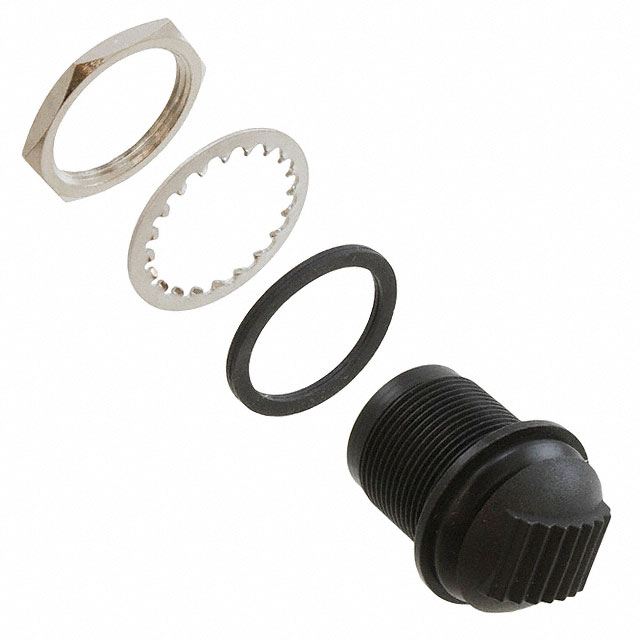

MTG22AD2
Or copy the link below:
- Mfr.Part #
- MTG22AD2
- Manufacturer
- APEM Inc.
- Package / Case
- 100
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 6A 125V
- Stock
- 10,063
- In Stock ：
- 10,063
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Current Rating (Amps) :
- 6A AC 4A DC
- Voltage - Rated DC :
- 28V
- Current Rating :
- 4A
- Mount :
- Panel
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Series :
- MT
- Length - Termination :
- 0.122 inch
- Contact Plating :
- Gold
- Contact Function :
- ON-(ON)
- Contact Current(DC)-Max :
- 4A
- Package / Case :
- 100
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 100mA
- Illumination Type :
- Illuminated, Non-Illuminated
- Body Length or Diameter :
- 20mm
- Factory Lead Time :
- 8 Weeks
- Illumination :
- Non-Illuminated
- Switch Type :
- TOGGLE SWITCH
- Sealing :
- EPOXY TERMINAL SEALED; IP68
- Actuator Type :
- ROCKER
- Switch Function :
- On-Mom
- Termination Style :
- Solder Lug
- Operating Temperature :
- -40°C~85°C
- Contact (DC) Max Rating R Load :
- 4A@30VDC
- Contact Resistance :
- 10MOhm
- Actuator Length :
- 0.44 inch
- Termination :
- Solder
- Panel Cutout Dimensions :
- Circular - 17.65mm Dia
- ECCN Code :
- EAR99
- Contact Voltage(DC)-Max :
- 30V
- Ratings :
- Dust Tight, IP51, IP68, Waterproof
- Contact (AC) Max Rating R Load :
- 6A@125VAC
- Feature :
- Black Actuator
- Mounting Type :
- Panel Mount
- Actuator Material :
- Polyamide (PA66), Nylon 6/6
- HTS Code :
- 8536.50.90.40
- Voltage - Rated AC :
- 125V
- Contact Current(AC)-Max :
- 6A
- Insulation Resistance :
- 1GOhm
- Body Height :
- 16.7mm
- Color :
- Black
- Electrical Life :
- 50,000 Cycles
- Bushing Thread :
- 11/16-28
- Contact Material :
- Gold, Silver
- REACH SVHC :
- No SVHC
- Circuit :
- SPDT
- Datasheets
- MTG22AD2
