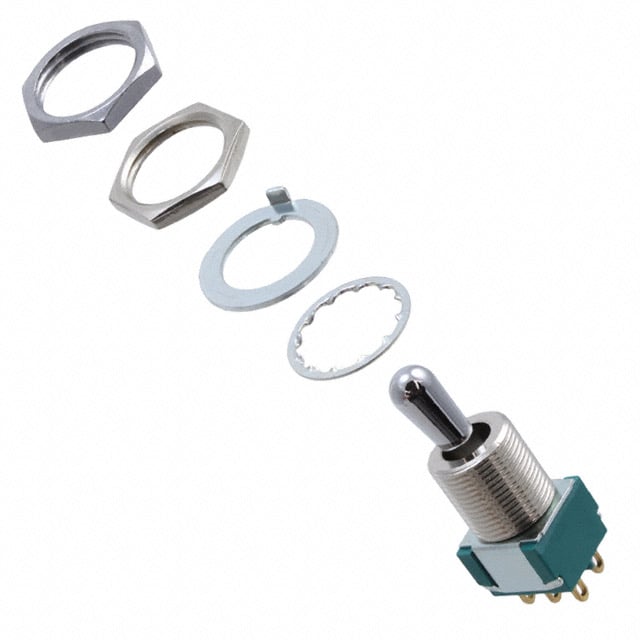

MTG206N
Or copy the link below:
- Mfr.Part #
- MTG206N
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 6A 125V
- Stock
- 240
- In Stock ：
- 240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Orientation :
- Vertical
- Published :
- 2004
- Actuator Material :
- Copper Alloy, Chrome Plated
- Body Breadth :
- 13 mm
- Contact Voltage(DC)-Max :
- 28V
- Current Rating :
- 6A
- Mounting Type :
- Panel Mount
- Voltage - Rated DC :
- 28V
- Contact Voltage(AC)-Max :
- 125V
- Packaging :
- Bulk
- Voltage - Rated AC :
- 125V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Circuit :
- DPDT
- Contact Current(AC)-Max :
- 6A
- Body Height :
- 9mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Switch Type :
- TOGGLE SWITCH
- Contact Current(DC)-Max :
- 4A
- RoHS Status :
- RoHS Compliant
- Actuator Type :
- Standard Round
- ECCN Code :
- EAR99
- Insulation Resistance :
- 1GOhm
- Surface Mount :
- No
- HTS Code :
- 8536.50.90.65
- Actuator Length :
- 11.50mm
- Panel Cutout Dimensions :
- Circular - 11.94mm Dia
- Contact Plating :
- Gold
- Operating Temperature :
- -20°C~80°C
- Series :
- MTG Green
- Factory Lead Time :
- 19 Weeks
- Illumination :
- Non-Illuminated
- Switch Function :
- On-On
- Sealing :
- EPOXY TERMINAL SEALED
- Termination Style :
- Solder Lug
- Color :
- Green
- Lead Free :
- Contains Lead
- Current Rating (Amps) :
- 6A AC 4A DC
- Contact Resistance :
- 10MOhm
- Bushing Thread :
- 15/32-32
- Operating Force-Max :
- 14.71 N
- JESD-609 Code :
- e4
- Body Length or Diameter :
- 13mm
- Electrical Life :
- 80,000 Cycles
- Contact Current Rating :
- 6A
- Feature :
- Epoxy Sealed Terminals
- Datasheets
- MTG206N
