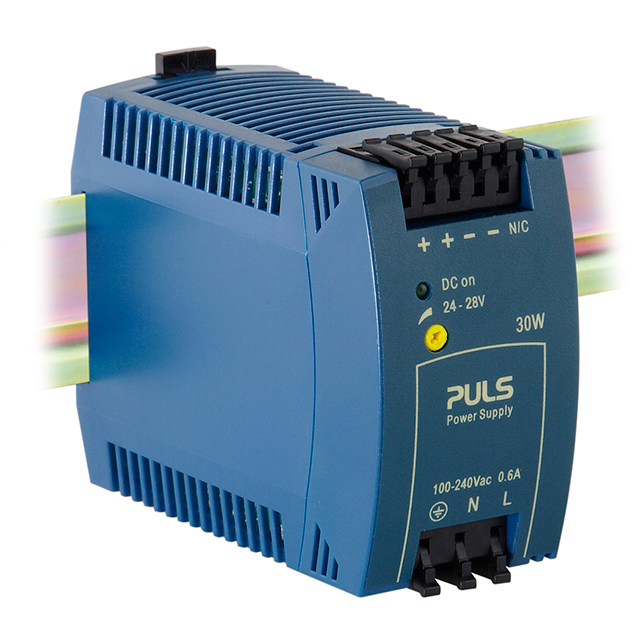

ML30.100

Manufacturer :

PULS

Product Category :

Trim/Adjustable Output :

yes

Operating Temperature :

0°C~70°C With Derating

Voltage - Input :

85V~264VAC

Output Current :

1.1A

Efficiency :

87.5%

Terminal Form :

UNSPECIFIED

Weight :

230g

Max Input Voltage :

240V

Total Power Output-Max :

30W

Number of Functions :

1

Type :

Enclosed

Series :

MiniLine (30W)

Max Output Voltage :

28V

Input Voltage-Nom :

196V

Output Voltage :

24V

RoHS Status :

RoHS Compliant

Applications :

ITE (Commercial)

Number of Terminations :

9

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Feature :

Adjustable Output, DC Input Capable, Load Sharing, Universal Input

Package / Case :

100

Current - Output 1 :

1.3A

Mount :

DIN Rail

Terminal Position :

UNSPECIFIED

Power (Watts) :

30W

Factory Lead Time :

2 Weeks

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Outputs :

1

Pbfree Code :

yes

Mounting Type :

DIN Rail

JESD-30 Code :

R-PXMA-X9

Size / Dimension :

3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm

Min Output Voltage :

24V

Min Input Voltage :

100V

Depth :

75mm
