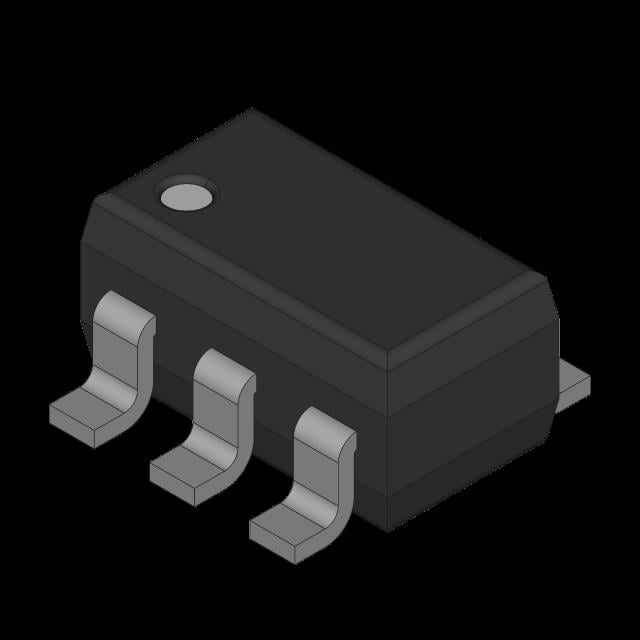

MIC5315-F4CYMT

Manufacturer :

Micrel Inc.

Product Category :

Voltage Regulators - Linear Regulator Controllers

Number of Functions :

1

Terminal Position :

Dual

Terminal Pitch :

0.4mm

Reach Compliance Code :

Compliant

Output Voltage1-Nom :

1.5 V

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Max Operating Temperature :

125 °C

Number of Terminations :

10

PSRR :

65dB ~ 40dB (1kHz ~ 20kHz)

Supplier Device Package :

10-TMLF® (2x2)

RoHS Status :

ROHS3 Compliant

Height Seated (Max) :

0.6mm

Voltage - Input (Max) :

5.5V

Voltage - Output (Min/Fixed) :

1V/1.2V 1.5V

Number of Pins :

10

Voltage - Output (Max) :

--

Max Output Current :

300mA

Min Output Voltage :

1V

Min Operating Temperature :

-40 °C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-30 Code :

S-PDSO-N10

Output Voltage2-Min :

1.176 V

Series :

--

Packaging :

Tape and Reel (TR)

Min Current Limit :

350mA

Regulator Type :

FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

Package Shape :

Square

Min Input Voltage :

1.7V

Package / Case :

10-UFDFN, 10-TMLF®

Output Voltage1-Max :

1.53 V

Output Current :

300 mA

Mounting Type :

Surface Mount

Mount :

Surface Mount

Terminal Form :

NO LEAD

Output Voltage2-Max :

1.224 V

Output Voltage :

1.5V

RoHS :

Compliant

Output Configuration :

Positive

Operating Temperature TJ-Max :

125 °C

Dropout Voltage1-Max :

0.2 V

Length :

2 mm

Lead Free :

Lead Free

Output Type :

FIXED

Current - Quiescent (Iq) :

12μA

Product Status :

Active

Protection Features :

Over Current, Over Temperature

Base Part Number :

MIC5315

Operating Temperature :

-40°C~125°C

Output Voltage 1 :

1.5V

Manufacturer :

Microchip Technology Inc

Dropout Voltage :

85mV

Published :

2016

Number of Outputs :

2

Number of Regulators :

2

Current - Output :

300mA, 300mA

Base Product Number :

MIC5315

Control Features :

Enable

Number of Terminals :

10

Operating Temperature TJ-Min :

-40 °C

Lifecycle Status :

Production (Last Updated: 2 years ago)

Voltage Dropout (Max) :

0.2V @ 300mA 0.2V @ 300mA

Seated Height-Max :

0.6 mm

Width :

2 mm

Pbfree Code :

yes

Dropout Voltage2-Max :

0.2 V

Max Input Voltage :

5.5 V

Factory Lead Time :

8 Weeks

Surface Mount :

yes

Output Voltage1-Min :

1.47 V

Output Voltage 2 :

1.2V
