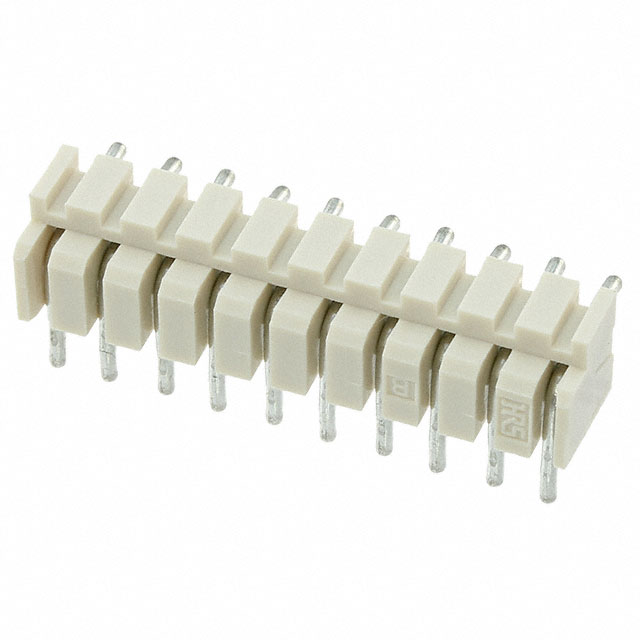

MDF14A-10P-2.5DS(05)

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

Operating Temperature :

-30°C~85°C

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Brass

HTS Code :

8536.69.40.40

Number of Rows :

1

Shrouding :

Unshrouded

Mixed Contacts :

No

RoHS Status :

RoHS Compliant

JESD-609 Code :

e3

Voltage - Rated :

250V

MIL Conformance :

No

Number of Positions :

10

Contact Length - Post :

0.130 3.30mm

Mating Contact Pitch :

0.098 inch

Series :

MDF14A

Fastening Type :

Push-Pull

Packaging :

Bulk

Number of Positions Loaded :

All

Mount :

Through Hole

Connector Type :

Header

Insulation Height :

0.216 5.49mm

DIN Conformance :

No

Reach Compliance Code :

Unknown

Number of Conductors :

ONE

Number Of PCB Rows :

1

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Mounting Type :

Through Hole, Right Angle

Factory Lead Time :

10 Weeks

ECCN Code :

EAR99

Filter Feature :

No

Insulation Color :

Natural

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Color :

Beige

Option :

GENERAL PURPOSE

Contact Finish - Mating :

Tin

UL Flammability Code :

94V-0

Contact Length - Mating :

0.130 3.30mm

Pitch - Mating :

0.098 2.50mm

Insulation Material :

Polyamide (PA), Nylon

Termination :

Kinked Pin, Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

UL

Terminal Pitch :

2.5mm

Contact Type :

Male Pin

Style :

Board to Board

Contact Shape :

Circular

Current Rating (Amps) :

5A
