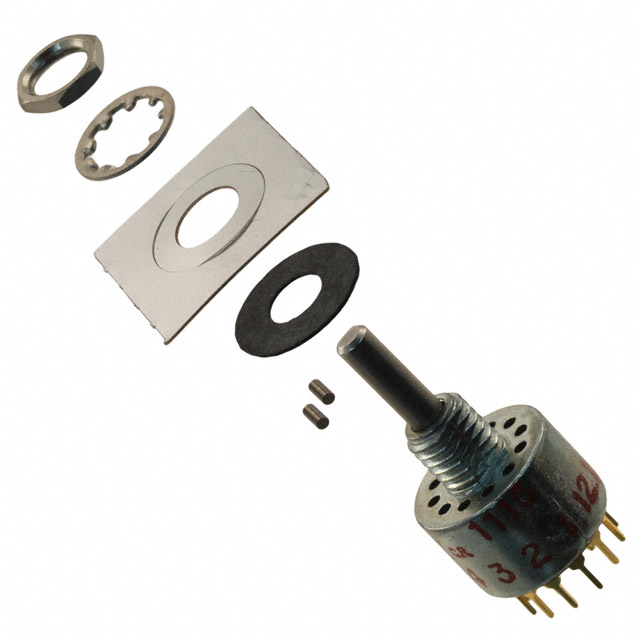

MD00S1NCGF

Manufacturer :

C&K

Product Category :

Factory Lead Time :

20 Weeks

Min Operating Temperature :

-30°C

Operating Force :

2.880 ~ 5.041gfm

Depth :

13.34mm

Current Rating :

250mA

Depth Behind Panel :

10.42mm

Throw Configuration :

DP, DP6T

Mounting Type :

Panel Mount, Through Hole

Orientation :

Straight

Current Rating (Amps) :

250mA AC/DC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Index Stops :

Continuous

Contact Material :

COPPER ALLOY

Contact Timing :

Non-Shorting (BBM)

Max Current Rating :

250mA

Actuator Material :

Stainless Steel

Number of Decks :

1

Length :

13.34mm

Contact Plating :

Gold, Silver

Max Voltage Rating (DC) :

28V

Termination Style :

PC Pin

Contact Style :

Non-Shorting

Max Operating Temperature :

85°C

Actuator Type :

Flatted (3.17mm Dia)

Voltage - Rated DC :

28V

Index Angle :

30 °

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Number of Positions :

6

Circuit per Deck :

DP6T

Max Voltage Rating (AC) :

125V

Contact Finish :

Gold

Actuator Length :

10.16mm

Voltage - Rated AC :

125V

Termination :

PC Pins

RoHS Status :

ROHS3 Compliant

Number of Poles per Deck :

2

Housing Material :

Zinc

Feature :

IP67 - Dust Tight, Waterproof

Electrical Life :

10000 Cycles

Published :

2014

Series :

M

Mount :

Panel, Through Hole
