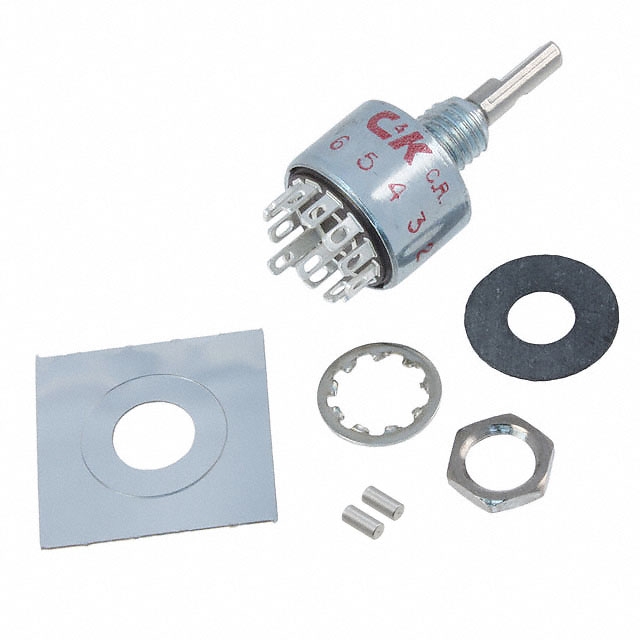

MD00L1NZQF

Manufacturer :

C&K

Product Category :

Length :

13.34mm

Number of Poles per Deck :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

6

Panel Cutout Dimensions :

Circular - 6.60mm Dia

RoHS Status :

ROHS3 Compliant

Current Rating (Amps) :

250mA AC/DC

Orientation :

Straight

Number of Decks :

1

Contact Timing :

Non-Shorting (BBM)

Voltage - Rated AC :

125V

Factory Lead Time :

20 Weeks

Max Current Rating :

250mA

Feature :

IP67 - Dust Tight, Waterproof

Current Rating :

250mA

Depth Behind Panel :

14.86mm

Max Voltage Rating (AC) :

125V

Mount :

Panel

Circuit per Deck :

DP6T

Radiation Hardening :

No

Contact Style :

Non-Shorting

Operating Force :

2.880 ~ 5.041gfm

Series :

M

Termination :

Solder

Termination Style :

Solder Lug

Voltage - Rated DC :

28V

Index Stops :

Continuous

Max Operating Temperature :

85°C

Min Operating Temperature :

-30°C

Contact Material :

COPPER ALLOY

Mounting Type :

Panel Mount

Actuator Type :

Flatted (3.17mm Dia)

Housing Material :

Zinc

Index Angle :

30 °

Electrical Life :

10000 Cycles

Contact Finish :

Silver

Actuator Material :

Stainless Steel

Max Voltage Rating (DC) :

28V

Depth :

13.34mm

Actuator Length :

10.16mm

Packaging :

Bulk
