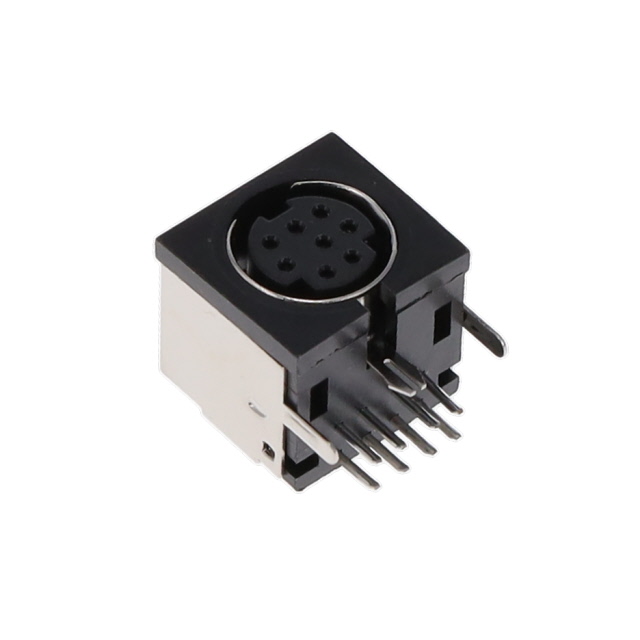

MD-80SM
Or copy the link below:
- Mfr.Part #
- MD-80SM
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE MINI DIN 8P SLDR
- Stock
- 9,565
- In Stock ：
- 9,565
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Circular Connector Assemblies
- Insulation Material :
- Plastic
- Number of Contacts :
- 8
- Factory Lead Time :
- 15 Weeks
- Shell Size - Insert :
- Mini DIN
- Packaging :
- Tray
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Silver
- Connector Type :
- Receptacle, Female Sockets
- Termination :
- Solder
- Lead Free :
- Lead Free
- Published :
- 2011
- Current Rating :
- 2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 85°C
- Contact Finish - Mating :
- Silver
- Feature :
- Ground
- Fastening Type :
- Push-Pull
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Number of Positions :
- 8
- Orientation :
- Keyed
- Min Operating Temperature :
- -40°C
- Voltage - Rated :
- 100VAC 12VDC
- Operating Temperature :
- -40°C~85°C
- Mounting Type :
- Through Hole, Right Angle
- Series :
- MD-SM
- Color :
- Black, Silver
- Shielding :
- Shielded
- Current Rating (Amps) :
- 1A 2A
- Mount :
- Through Hole
- Datasheets
- MD-80SM
MD-80SM Documents
Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 8 Positions Solder Silver Tray Keyed Push-Pull
MD-80SM Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the MD-SM Series.If the temperature is below 85°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Ground feature.There is a mounting hole at Through Hole.Devices operate at -40°C~85°C operating temperatures.
MD-80SM Features
MD-SM series
MD-80SM Applications
There are a lot of CUI Devices
MD-80SM Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
