MD-80FC

Share

Or copy the link below:

Mfr.Part #
MD-80FC
Manufacturer
CUI Devices
Package / Case
Datasheet
Download
Description
CONN JACK FMALE MINI DIN 8P SLDR
Stock
40,680
In Stock :
40,680

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
CUI Devices
Product Category :
Circular Connector Assemblies
Contact Finish - Mating :
Silver
Operating Temperature :
-40°C~85°C
Contact Style :
RND PIN-SKT
DIN Conformance :
yes
Connector Type :
Jack, Female Sockets
Shell Size - Insert :
Mini DIN
Body Depth :
0.52 inch
Factory Lead Time :
7 Weeks
Durability :
1000 Cycles
Shell Material :
Polybutylene Terephthalate (PBT)
Series :
MD-FC
Orientation :
Keyed
RoHS Status :
RoHS Compliant
Contact Material :
Phosphor Bronze
Length - Termination :
0.14 inch
Contact Resistance :
30mOhm
Mount :
Through Hole
Shielding :
Shielded
Current Rating (Amps) :
1A 2A
Feature :
Board Guide, Board Lock, Ground
Packaging :
Tray
Lead Free :
Lead Free
Polarization Key :
POLAR PIN POSITION
Published :
2016
Fastening Type :
Push-Pull
Pbfree Code :
yes
Material Flammability Rating :
UL94 V-0
Body Breadth :
0.51 inch
Number of Positions :
8
Voltage - Rated :
100VAC 12VDC
Mounting Type :
Through Hole, Right Angle
Body Length or Diameter :
0.56 inch
Number of Ports :
1
Current Rating :
2A
Termination :
Solder
Reliability :
COMMERCIAL
Insulation Resistance :
50000000Ohm
Dielectric Withstanding Voltage :
250VAC V
Total Number of Contacts :
8
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Datasheets
MD-80FC
Introducing Circular Connector Assemblies CUI Devices MD-80FC from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Through Hole, Right Angle, MD-80FC pinout, MD-80FC datasheet PDF, MD-80FC amp .Beyond Circular Connector Assemblies CUI Devices MD-80FC ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

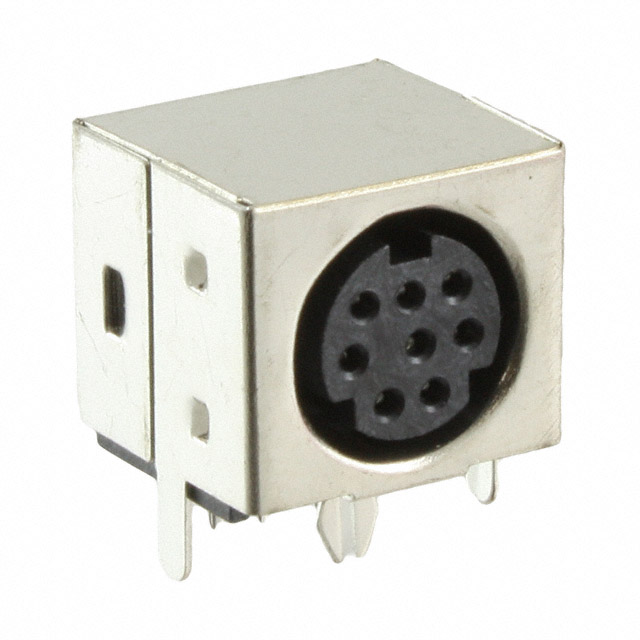

CUI Devices MD-80FC


Jack, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 8 Positions Solder Silver Tray Keyed Push-Pull

MD-80FC Overview


Packaging is in the form of Jack, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the MD-FC Series.Several benefits come from the Board Guide, Board Lock, Ground feature.There is a mounting hole at Through Hole.Devices operate at -40°C~85°C operating temperatures.

MD-80FC Features


MD-FC series


MD-80FC Applications


There are a lot of CUI Devices
MD-80FC Circular Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
