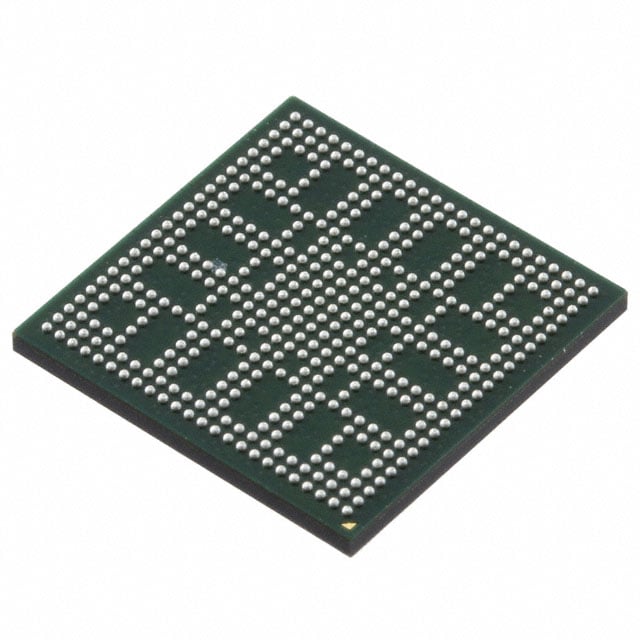

MCIMX6L3EVN10AB

Manufacturer :

NXP Semiconductors

Product Category :

Microprocessors

Integrated Cache :

yes

Number of Cores/Bus Width :

1 Core 32-Bit

Operating Temperature :

-40°C~105°C TA

RoHS Status :

ROHS3 Compliant

Voltage - I/O :

1.2V 1.8V 3.0V

Packaging :

Tray

Terminal Pitch :

0.5mm

Surface Mount :

yes

Ethernet :

10/100Mbps (1)

RAM Controllers :

LPDDR2, LVDDR3, DDR3

Height Seated (Max) :

1.1mm

Supply Current-Max :

1.1mA

Supply Voltage-Max (Vsup) :

1.5V

Format :

FIXED POINT

Display & Interface Controllers :

Keypad, LCD

Number of Terminations :

576

Peak Reflow Temperature (Cel) :

260

Series :

i.MX6SL

JESD-30 Code :

S-PBGA-B

Number of I/O :

162

Qualification Status :

Not Qualified

Supply Voltage-Min (Vsup) :

1.375V

Graphics Acceleration :

yes

Core Processor :

ARM® Cortex®-A9

Terminal Position :

BOTTOM

Time@Peak Reflow Temperature-Max (s) :

40

Co-Processors/DSP :

Multimedia; NEON™ SIMD

Address Bus Width :

16

Published :

2002

JESD-609 Code :

e1

Additional Interfaces :

AC97, I2C, I2S, MMC/SD/SDIO, SPI, SSI, UART

Factory Lead Time :

15 Weeks

RAM (words) :

32000

Bus Compatibility :

CAN; ETHERNET; IRDA; I2C; I2S; SPI; UART; USB

Bit Size :

32

USB :

USB 2.0 + PHY (3)

Base Part Number :

MCIMX6

External Data Bus Width :

32

HTS Code :

8542.31.00.01

Low Power Mode :

yes

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Security Features :

ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

ECCN Code :

5A992

Length :

13mm

Terminal Form :

Ball

Boundary Scan :

yes

Package / Case :

432-TFBGA

Speed :

1.0GHz
