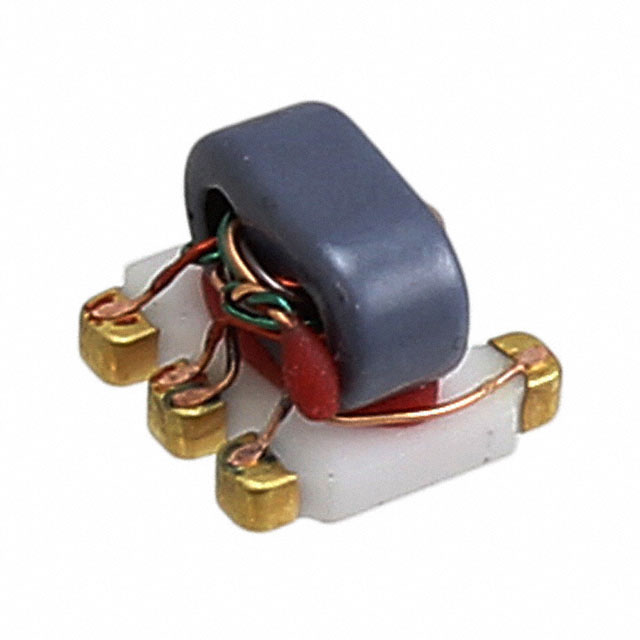

MABAES0060

Manufacturer :

MACOM Technology Solutions

Product Category :

Balun

Frequency Range :

300kHz~200MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

3.81mm

Max DC Current :

500mA

Radiation Hardening :

No

Number of Pins :

5

Insertion Loss (dB) :

1.5 dB

ECCN Code :

EAR99

Physical Dimension :

L3.81XB3.81XH3.8 (mm)

Length :

3.81mm

Transformer Type :

RF TRANSFORMER

Factory Lead Time :

14 Weeks

Impedance - Unbalanced/Balanced :

1:1

Max Operating Temperature :

85°C

Return Loss-Min :

10dB

Pbfree Code :

yes

Lead/Base Style :

Gull wing

Power Rating :

500mW

Height :

2.67mm

Cut-off Frequency-Min :

0.3MHz

Published :

2008

Terminal Finish :

Gold (Au) - with Nickel (Ni) barrier

JESD-609 Code :

e4

Packaging :

Tape and Reel (TR)

Width :

3.81mm

Termination :

SMD/SMT

Mount :

Surface Mount

Min Operating Temperature :

-40°C

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount

Package / Case :

6-SMD (5 Leads), Flat Lead

Cut-off Frequency-Max :

200MHz
