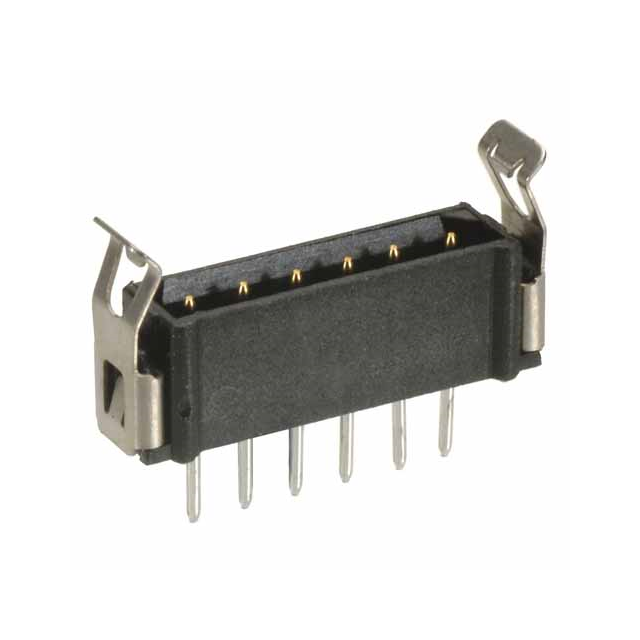

M80-8820622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Shape :

Circular

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Factory Lead Time :

15 Weeks

Operating Temperature :

-55°C~125°C

Durability :

500 Cycles

Filter Feature :

No

IEC Conformance :

No

RoHS Status :

Non-RoHS Compliant

JESD-609 Code :

e0

Terminal Pitch :

2mm

Reliability :

COMMERCIAL

Pitch - Mating :

0.079 2.00mm

Mating Contact Pitch :

0.079 inch

DIN Conformance :

No

Insulation Material :

Polyamide (PA46), Nylon 4/6

Body Length or Diameter :

0.634 inch

Insertion Force-Max :

2.78 N

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Style :

Board to Board or Cable

Mixed Contacts :

No

Contact Finish - Mating :

Gold

Reference Standard :

UL

UL Flammability Code :

94V-0

Contact Type :

Male Pin

Contact Finish - Post :

Tin-Lead

Plating Thickness :

30μin

Insulation Color :

Black

Fastening Type :

Latch Lock

Number of Conductors :

ONE

Voltage - Rated :

800V

Contact Resistance :

25mOhm

Insulation Height :

0.219 5.56mm

Contact Material :

Phosphor Bronze

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.118 3.00mm

Packaging :

Bulk

Option :

GENERAL PURPOSE

Series :

Datamate L-Tek

Connector Type :

PLUG

Mounting Type :

Through Hole

Additional Feature :

LATCHED

Number of Positions Loaded :

All

Termination :

Solder

Shrouding :

Shrouded - 4 Wall

Current Rating (Amps) :

2.2A

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

1

Contact Finish Thickness - Post :

118.1μin 3.00μm

MIL Conformance :

No

Mounting Option 1 :

LOCKING
