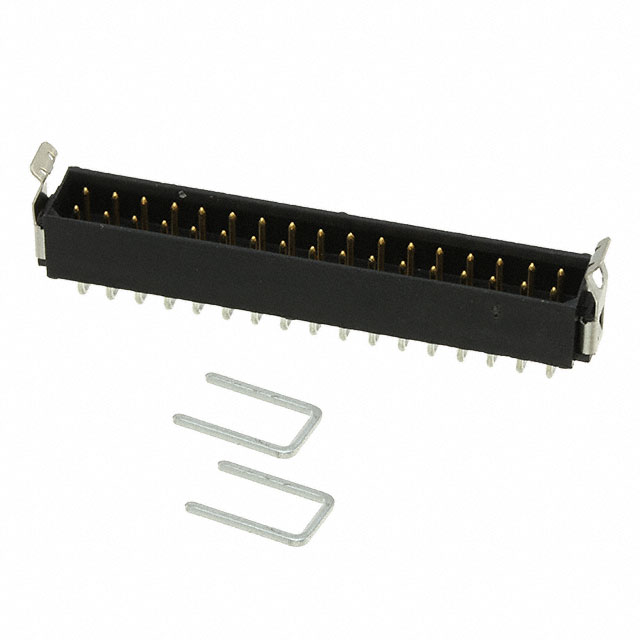

M80-8663422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Series :

Datamate L-Tek

Feature :

Strain Relief Clips

Contact Material :

Phosphor Bronze

Pitch - Mating :

0.079 2.00mm

Contact Shape :

Circular

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin-Lead

MIL Conformance :

No

Fastening Type :

Latch Lock

Mount :

Through Hole

Pbfree Code :

No

Insulation Color :

Black

RoHS Status :

Non-RoHS Compliant

Current Rating (Amps) :

2.2A

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Durability :

500 Cycles

Length - Termination :

0.118 inch

Factory Lead Time :

11 Weeks

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Number of Rows :

2

Mounting Type :

Through Hole, Right Angle

Number of Positions :

34

Mating Contact Pitch :

0.079 inch

Contact Length - Post :

0.118 3.00mm

JESD-609 Code :

e0

Published :

2011

Row Spacing - Mating :

0.079 (2.00mm)

Option :

GENERAL PURPOSE

Style :

Board to Board or Cable

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

2

Additional Feature :

LATCHED

Reach Compliance Code :

not_compliant

Number of Positions Loaded :

All

Insulation Height :

0.235 5.97mm

Current Rating :

3A

Reference Standard :

UL

Contact Gender :

Male

Filter Feature :

No

Reliability :

COMMERCIAL

Termination :

Solder

Insulation Resistance :

1000000000Ohm

Packaging :

Tube

Contact Finish - Mating :

Gold

Housing Material :

Polyester

Voltage - Rated :

120V

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Conductors :

ONE

Insulation Material :

Polyester, Glass Filled

DIN Conformance :

No

IEC Conformance :

No

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Post :

118.1μin 3.00μm

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin
