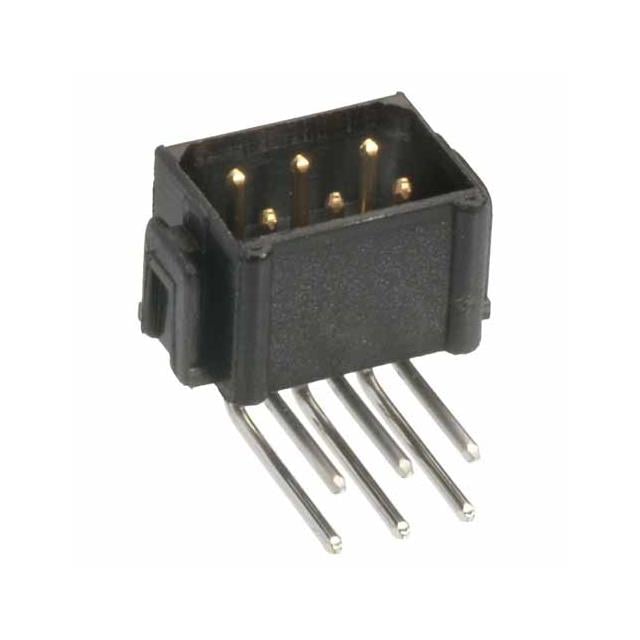

M80-8413445

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Height :

0.235 5.97mm

Plating Thickness :

30μin

HTS Code :

8536.69.40.40

Voltage - Rated :

120V

Contact Shape :

Circular

ECCN Code :

EAR99

Mixed Contacts :

No

Number of Positions Loaded :

All

Insulation Resistance :

100000000Ohm

Packaging :

Tube

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination :

Solder

Fastening Type :

Latch Holder

Insulation Color :

Black

IEC Conformance :

No

Contact Length - Post :

0.118 3.00mm

Additional Feature :

RoHS Compliant

Mounting Option 1 :

LOCKING

Pitch - Mating :

0.079 2.00mm

Series :

Datamate L-Tek

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Style :

Board to Board or Cable

Mounting Type :

Through Hole, Right Angle

Mating Contact Pitch :

0.079 inch

Durability :

500 Cycles

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Body Length or Diameter :

1.478 inch

Length - Termination :

0.118 inch

Number Of PCB Rows :

2

DIN Conformance :

No

Number of Conductors :

ONE

Current Rating (Amps) :

2.2A

Number of Positions :

34

Row Spacing - Mating :

0.079 (2.00mm)

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Gold

Contact Type :

Male Pin

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Filter Feature :

No

MIL Conformance :

No

UL Flammability Code :

94V-0

Operating Temperature :

-55°C~125°C

Contact Material :

Phosphor Bronze

Insulation Material :

Polyamide (PA46), Nylon 4/6

Feature :

Strain Relief Clips

Shrouding :

Shrouded - 4 Wall
