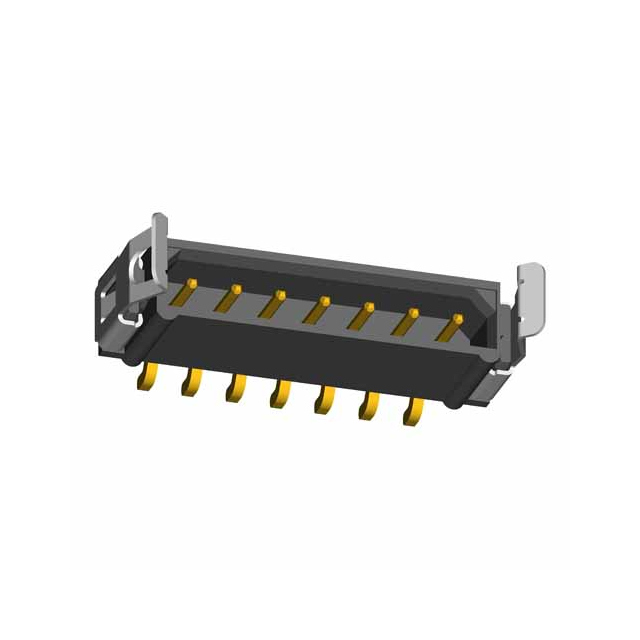

M80-8360422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Number of Rows :

1

Contact Style :

RND PIN-SKT

Mounting Type :

BOARD

Factory Lead Time :

17 Weeks

Insulation Resistance :

100000000Ohm

Operating Temperature (Min) :

-55°C

Contact Resistance :

25mOhm

Contact Finish - Mating :

GOLD (30)

Mounting Option 1 :

Latch

Terminal Pitch :

2mm

Body Length or Diameter :

0.472 inch

Insulator Color :

Black

Insertion Force-Max :

2.78 N

Reliability :

COMMERCIAL

Operating Temperature (Max) :

125°C

Plating Thickness :

30μin

Contact Pattern :

RECTANGULAR

RoHS Status :

Non-RoHS Compliant

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Mounting Style :

RIGHT ANGLE

Contact Gender :

Male

ECCN Code :

EAR99

Polarization Key :

POLARIZED KEY

Mating Contact Pitch :

0.079 inch

DIN Conformance :

No

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

Reference Standard :

UL

Body/Shell Style :

Receptacle

Insulation Material :

Glass Filled Polyamide

Total Number of Contacts :

4

Body Depth :

0.295 inch

Rated Current (Signal) :

3A

Pbfree Code :

No

Withdrawl Force-Min :

.1946 N

Durability :

500 Cycles

Package / Case :

SIL

Filter Feature :

No

Number Of PCB Rows :

1

Additional Feature :

LATCHED

Connector Type :

BOARD CONNECTOR

Body Breadth :

0.157 inch

Mounting Option 2 :

LOCKING

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Brass

MIL Conformance :

No

JESD-609 Code :

e0

Option :

GENERAL PURPOSE

IEC Conformance :

No

Termination Type :

Surface Mount
