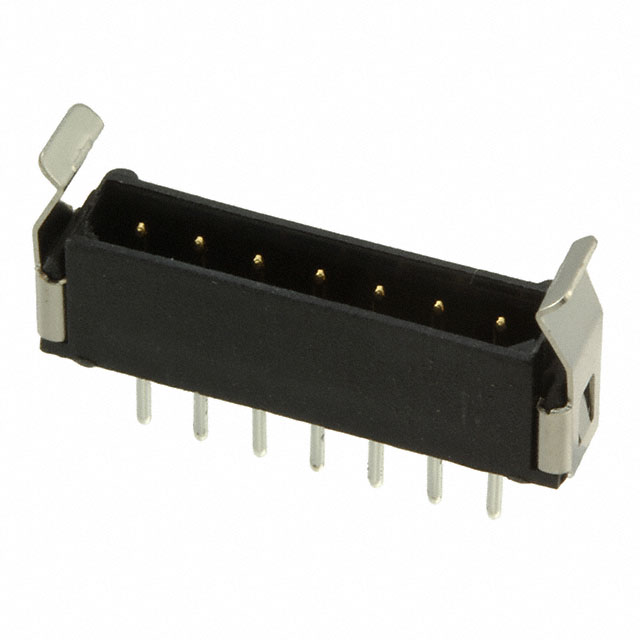

M80-8050722

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number Of PCB Rows :

1

Option :

GENERAL PURPOSE

Connector Type :

Header

Contact Material :

Phosphor Bronze

Number of Conductors :

ONE

Contact Finish Thickness - Post :

118.1μin 3.00μm

Style :

Board to Board or Cable

Pitch - Mating :

0.079 2.00mm

Mixed Contacts :

No

Fastening Type :

Friction Lock

Durability :

500 Cycles

Filter Feature :

No

DIN Conformance :

No

Published :

2012

Number of Positions Loaded :

All

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Type :

Male Pin

Series :

Datamate L-Tek

Termination :

Solder

Voltage - Rated :

800V

Contact Plating :

Gold, Tin

MIL Conformance :

No

Reach Compliance Code :

not_compliant

Contact Length - Post :

0.118 3.00mm

Insulation Height :

0.219 5.56mm

HTS Code :

8536.69.40.40

Number of Rows :

1

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Contact Resistance :

20mOhm

Current Rating (Amps) :

2.2A

ECCN Code :

EAR99

Mount :

Through Hole

Material Flammability Rating :

UL94 V-0

Contact Finish - Post :

Tin-Lead

Contact Finish - Mating :

Gold

Terminal Pitch :

2mm

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

7 Weeks

Additional Feature :

LATCHED

RoHS Status :

Non-RoHS Compliant

Packaging :

Tube

Number of Positions :

7

Package / Case :

SIL

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

JESD-609 Code :

e0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Plating Thickness :

29μin

Shrouding :

Shrouded - 4 Wall

Insulation Material :

Polyester, Glass Filled

Contact Gender :

Male

Pbfree Code :

No

IEC Conformance :

No

Insulation Color :

Black

Reference Standard :

UL

Contact Shape :

Circular

Mounting Type :

Through Hole

Operating Temperature :

-55°C~125°C
