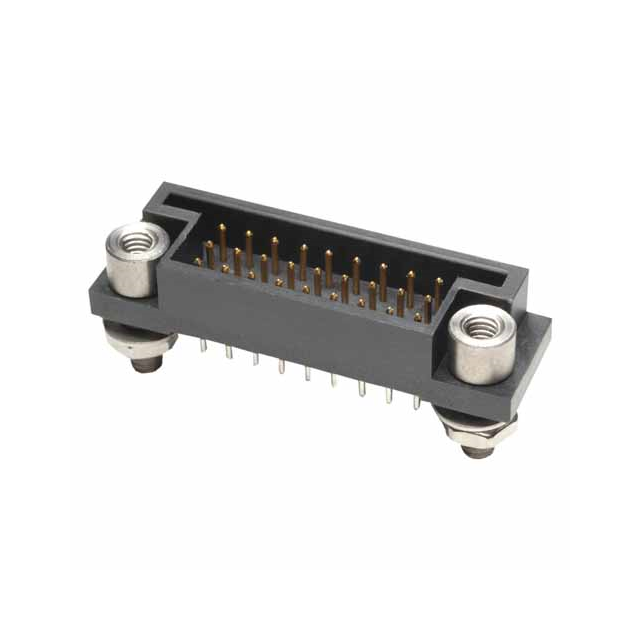

M80-7006322

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Series :

Datamate J-Tek

Mount :

Through Hole

Insulation Material :

Polyamide (PA46), Nylon 4/6

Contact Shape :

Circular

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

PANEL MOUNTABLE

Withdrawl Force-Min :

.199882 N

Contact Material :

Phosphor Bronze

Factory Lead Time :

9 Weeks

Reach Compliance Code :

not_compliant

Voltage - Rated :

120V

IEC Conformance :

No

Number of Rows :

3

Material Flammability Rating :

UL94 V-0

RoHS Status :

Non-RoHS Compliant

Feature :

Mating Flange, Mounting Flange, Mounting Hardware

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

9.1mm

Housing Color :

Black

UL Flammability Code :

94V-0

DIN Conformance :

No

Number of Positions Loaded :

All

Number of Conductors :

ONE

Current Rating :

3A

Durability :

500 Cycles

Contact Resistance :

25mOhm

Published :

2010

Insulation Resistance :

100000000Ohm

Housing Material :

Polyamide

Number Of PCB Rows :

3

Contact Length - Post :

0.118 3.00mm

Mating Contact Pitch :

0.079 inch

Shrouding :

Shrouded - 4 Wall

Packaging :

Tray

Contact Finish - Post :

Tin-Lead

Operating Temperature :

-55°C~125°C

ECCN Code :

EAR99

Filter Feature :

No

Termination :

Solder

Max Current Rating :

3A

Gender :

Male

Current Rating (Amps) :

2.2A

Orientation :

Straight

Number of Positions :

63

JESD-609 Code :

e0

Style :

Board to Board or Cable

PCB Contact Row Spacing :

2.0066 mm

Insulation Height :

0.244 6.20mm

Contact Finish - Mating :

Gold

Reliability :

COMMERCIAL

Connector Type :

Header

Contact Type :

Male Pin

Reference Standard :

UL

Pitch - Mating :

0.079 2.00mm

Terminal Pitch :

2mm

MIL Conformance :

No

Length :

55.1mm

Insertion Force-Max :

2.78 N

Voltage - Rated DC :

260V

Pbfree Code :

No

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Row Spacing - Mating :

0.079 (2.00mm)

Fastening Type :

Threaded

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole
