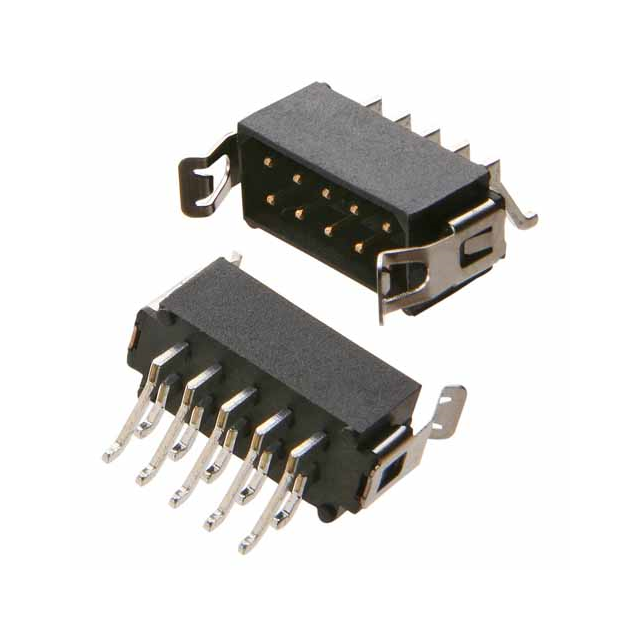

M80-6661022

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Operating Temperature :

-55°C~125°C

Contact Finish Thickness - Post :

118.1μin 3.00μm

Body Length or Diameter :

0.555 inch

UL Flammability Code :

94V-0

DIN Conformance :

No

JESD-609 Code :

e0

Mating Contact Pitch :

0.079 inch

Total Number of Contacts :

10

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Connector Type :

Header

Contact Material :

Brass

IEC Conformance :

No

Plating Thickness :

30μin

PCB Contact Pattern :

RECTANGULAR

Voltage - Rated :

800V

Insulation Height :

0.235 5.97mm

Contact Shape :

Circular

Mount :

Surface Mount

Body Depth :

0.394 inch

Durability :

500 Cycles

Packaging :

Tube

Contact Type :

Male Pin

Mounting Type :

Surface Mount, Right Angle

Fastening Type :

Latch Lock

Contact Finish - Mating :

Gold

Pitch - Mating :

0.079 2.00mm

Withdrawl Force-Min :

.1946 N

Number of Positions Loaded :

All

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Published :

2013

Contact Finish - Post :

Tin-Lead

Pbfree Code :

No

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

Insulation Color :

Black

Filter Feature :

No

Series :

Datamate L-Tek

Option :

GENERAL PURPOSE

Current Rating (Amps) :

2.2A

Shrouding :

Shrouded - 4 Wall

Number of Positions :

10

Reach Compliance Code :

not_compliant

Mixed Contacts :

No

RoHS Status :

Non-RoHS Compliant

Additional Feature :

LATCHED

Reference Standard :

UL

MIL Conformance :

No

Number of Rows :

2

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Row Spacing - Mating :

0.079 (2.00mm)

Factory Lead Time :

11 Weeks

Feature :

Strain Relief Clips

Style :

Board to Board or Cable
