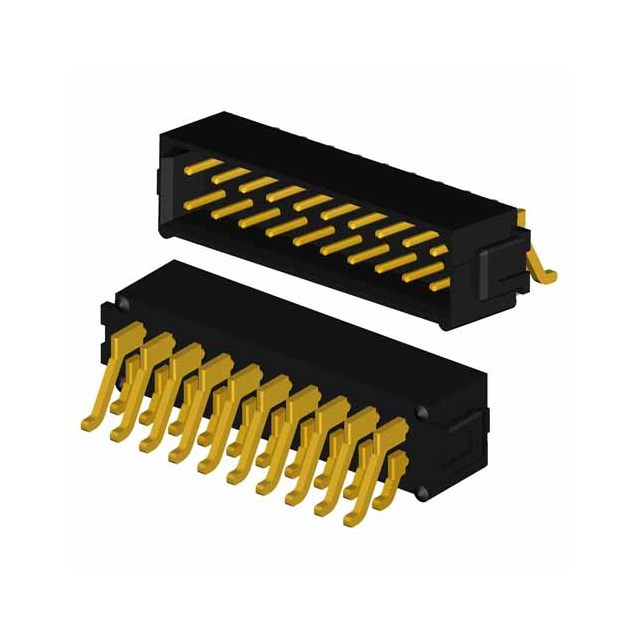

M80-6653445

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.079 inch

IEC Conformance :

No

Number of Conductors :

ONE

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

34

Pbfree Code :

yes

Voltage - Rated :

800V

Body Depth :

0.394 inch

Style :

Board to Board or Cable

Plating Thickness :

30μin

Feature :

Strain Relief Clips

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Body Length or Diameter :

1.478 inch

Number of Positions :

34

Filter Feature :

No

Termination :

Solder

UL Flammability Code :

94V-0

Contact Shape :

Circular

Reference Standard :

UL

Number of Positions Loaded :

All

Current Rating (Amps) :

2.2A

Polarization Key :

POLARIZED HOUSING

PCB Contact Pattern :

RECTANGULAR

Contact Material :

Brass

Number of Rows :

2

Additional Feature :

RoHS Compliant

Row Spacing - Mating :

0.079 (2.00mm)

Pitch - Mating :

0.079 2.00mm

Mixed Contacts :

No

Fastening Type :

Latch Holder

Insulation Height :

0.235 5.97mm

Withdrawl Force-Min :

.1946 N

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Connector Type :

Header

JESD-609 Code :

e4

Durability :

500 Cycles

Option :

GENERAL PURPOSE

Packaging :

Tube

Series :

Datamate L-Tek

Contact Type :

Male Pin

Insulation Color :

Black

Operating Temperature :

-55°C~125°C

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Material Flammability Rating :

UL94 V-0

Mounting Type :

Surface Mount, Right Angle

Number Of PCB Rows :

2

Mounting Option 1 :

LOCKING

Shrouding :

Shrouded - 4 Wall

MIL Conformance :

No

Insulation Resistance :

100000000Ohm

DIN Conformance :

No
