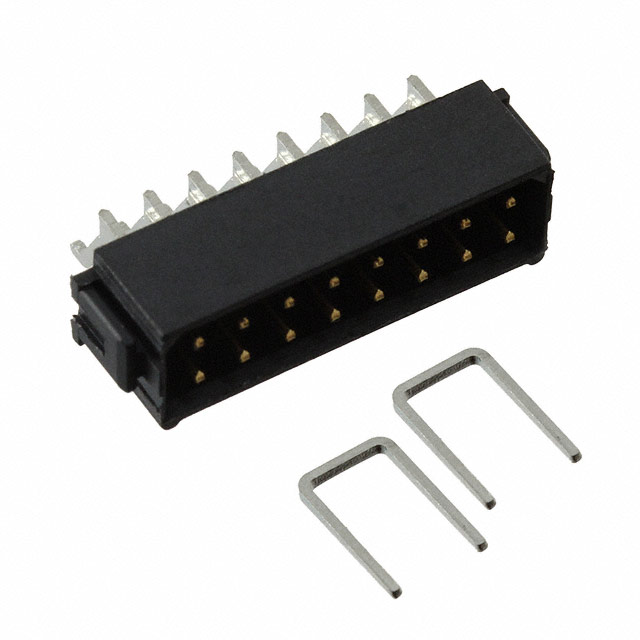

M80-6651642

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Contact Type :

Male Pin

Connector Type :

PLUG

Contact Material :

Brass

Contact Finish - Post :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Number of Positions :

16

Published :

2006

Pitch - Mating :

0.079 2.00mm

Style :

Board to Board or Cable

Number of Rows :

2

Max Current Rating :

3A

Shrouding :

Shrouded - 4 Wall

Reliability :

COMMERCIAL

Pbfree Code :

yes

Polarization Key :

POLARIZED HOUSING

Row Spacing - Mating :

0.079 (2.00mm)

Number Of PCB Rows :

2

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Number of Positions Loaded :

All

Total Number of Contacts :

16

Mixed Contacts :

No

Withdrawl Force-Min :

.1946 N

Filter Feature :

No

Insulation Resistance :

100MOhm

Fastening Type :

Latch Holder

Factory Lead Time :

13 Weeks

Contact Finish Thickness - Post :

118.1μin 3.00μm

Voltage - Rated :

800V

Material Flammability Rating :

UL94 V-0

Mount :

Surface Mount

Radiation Hardening :

No

Feature :

Strain Relief Clips

Mounting Type :

Surface Mount, Right Angle

Insulation Height :

0.235 5.97mm

Contact Shape :

Circular

Durability :

500 Cycles

Length :

19.55mm

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

RoHS Compliant

Housing Material :

Polyamide

Depth :

10mm

Mating Contact Pitch :

0.079 inch

REACH SVHC :

No SVHC

Plating Thickness :

30μin

Voltage - Rated DC :

120V

MIL Conformance :

No

Series :

Datamate L-Tek

Option :

GENERAL PURPOSE

Termination :

Solder

Contact Resistance :

25mOhm

Current Rating (Amps) :

2.2A

Operating Temperature :

-55°C~125°C

DIN Conformance :

No

Current Rating :

3A

Orientation :

RIGHT ANGLE

Reference Standard :

UL

Number of Conductors :

ONE

JESD-609 Code :

e3

Gender :

Male

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Max Voltage Rating (AC) :

120V

Packaging :

Tube

Housing Color :

Black

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0
