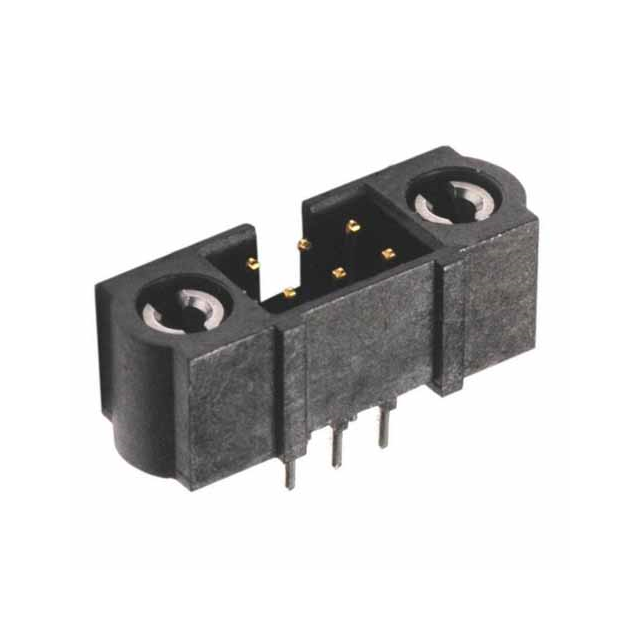

M80-5T14042MC

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Pins :

20

Stack Height (Mating) :

7.3mm 7.7mm 9.75mm 10.75mm 13.35mm 14.75mm

Style :

Board to Board or Cable

Feature :

Keying Slot, Mating Flange

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Post :

Tin

Fastening Type :

Push-Turn Lock

Factory Lead Time :

10 Weeks

Mixed Contacts :

No

Contact Length - Post :

0.130 3.30mm

MIL Conformance :

No

Reference Standard :

UL

Series :

Datamate J-Tek

Contact Finish - Mating :

Gold

Insulation Height :

0.220 5.60mm

Number of Rows :

2

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Filter Feature :

No

Contact Type :

Male Pin

Body Length or Diameter :

1.969 inch

Pitch - Mating :

0.079 2.00mm

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Contact Shape :

Circular

Contact Material :

Phosphor Bronze

Connector Type :

Header

Number Of PCB Rows :

2

Length - Termination :

0.13 inch

Insulation Resistance :

100000000Ohm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Row Spacing - Mating :

0.079 (2.00mm)

Number of Positions :

40

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

120V

Insulation Color :

Black

Packaging :

Tube

IEC Conformance :

No

Shrouding :

Shrouded - 4 Wall

Number of Conductors :

ONE

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Mounting Type :

Through Hole

Option :

GENERAL PURPOSE

PCB Contact Pattern :

RECTANGULAR

Mount :

Through Hole

Published :

2011

Number of Positions Loaded :

All

Operating Temperature :

-55°C~121°C

Durability :

500 Cycles

Mating Contact Pitch :

0.079 inch

Current Rating (Amps) :

2.2A

DIN Conformance :

No

UL Flammability Code :

94V-0

Termination :

Solder

Pbfree Code :

yes
