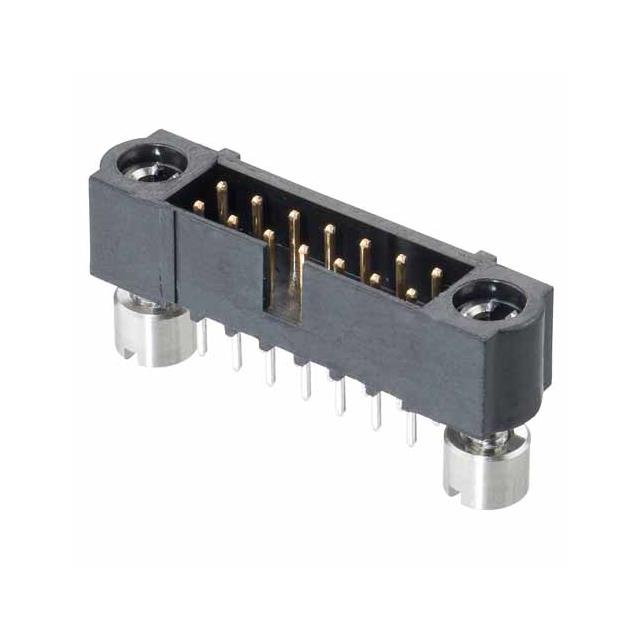

M80-5T13405ME
Or copy the link below:
- Mfr.Part #
- M80-5T13405ME
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 2MM PCB 34POS
- Stock
- 25,768
- In Stock ：
- 25,768
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Series :
- Datamate J-Tek
- Contact Finish - Post :
- Gold
- Mounting Type :
- Through Hole
- Fastening Type :
- Push-Turn Lock
- Subcategory :
- Power Connectors
- Connector Type :
- Header
- Ingress Protection :
- -
- Contact Shape :
- Circular
- Number of Positions Loaded :
- All
- Overall Contact Length :
- -
- Contact Finish - Mating :
- Gold
- Product Status :
- Active
- Number of Rows :
- 2
- Operating Temperature :
- -55°C ~ 121°C
- Mated Stacking Heights :
- 7.3mm, 7.8mm
- Insulation Height :
- 0.220 (5.60mm)
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- 29.5µin (0.75µm)
- Style :
- Board to Board or Cable
- Voltage Rating :
- 800VAC/DC
- Current Rating (Amps) :
- 2.2A
- Contact Length - Mating :
- -
- Shrouding :
- Shrouded - 4 Wall
- Product Type :
- Power to the Board
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Features :
- Keying Slot, Mating Flange
- Package :
- Tube
- Applications :
- -
- Number of Positions :
- 34
- Contact Length - Post :
- 0.130 (3.30mm)
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 29.5µin (0.75µm)
- Pitch - Mating :
- 0.079 (2.00mm)
- Insulation Color :
- Black
- Contact Type :
- Male Pin
- Datasheets
- M80-5T13405ME
M80-5T13405ME Documents
Datamate J-Tek Series Header Solder 34 Positions -55°C ~ 121°C Through Hole
M80-5T13405ME Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.This product is part of the Datamate J-Tek Series.In this case, the device operates at -55°C ~ 121°C Operating Temperature.
M80-5T13405ME Features
Datamate J-Tek series
