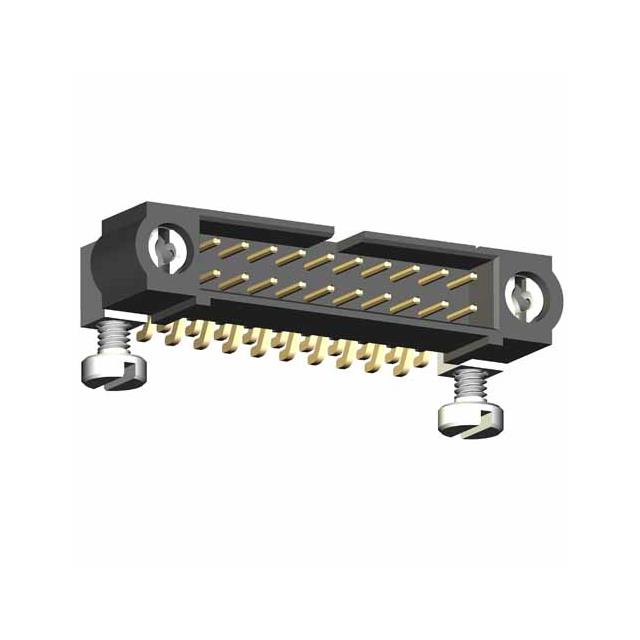

M80-5S20642MD
Or copy the link below:
- Mfr.Part #
- M80-5S20642MD
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 2MM SMT R/A 6POS
- Stock
- 8,703
- In Stock ：
- 8,703
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2 Row
- Contact Length - Post :
- -
- Overall Contact Length :
- -
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Brand :
- Harwin
- Ingress Protection :
- -
- Product Status :
- Active
- Tradename :
- Datamate
- Contact Finish Thickness - Post :
- 12.0µin (0.30µm)
- Housing Color :
- Black
- Mounting Type :
- Surface Mount, Right Angle
- RoHS :
- Details
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Maximum Operating Temperature :
- + 125 C
- Shrouding :
- Shrouded - 4 Wall
- Contact Gender :
- Pin (Male)
- Pitch :
- 2 mm
- Contact Shape :
- Circular
- Fastening Type :
- Threaded
- Base Product Number :
- 120088
- Insulation Color :
- Black
- Mounting Angle :
- Straight
- Current Rating (Amps) :
- 2.2A
- Number of Positions :
- 6 Position
- Connector Type :
- Header
- Manufacturer :
- Harwin
- Housing Material :
- Polyphenylene Sulfide (PPS)
- Features :
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Pitch - Mating :
- 0.079 (2.00mm)
- Contact Length - Mating :
- -
- Contact Finish Thickness - Mating :
- 29.5µin (0.75µm)
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold
- Applications :
- -
- Flammability Rating :
- UL 94V-0
- Minimum Operating Temperature :
- - 55 C
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Mated Stacking Heights :
- -
- Series :
- *
- Current Rating :
- 3 A
- Voltage Rating :
- 800VAC/DC
- Subcategory :
- Headers and Wire Housings
- Product Type :
- Headers and Wire Housings
- Style :
- Board to Board or Cable
- Package :
- Bulk
- Mounting Style :
- SMD/SMT
- Operating Temperature :
- -55°C ~ 125°C
- Number of Positions Loaded :
- All
- Product Category :
- Headers and Wire Housings
- Insulation Height :
- 0.218 (5.55mm)
- Datasheets
- M80-5S20642MD
M80-5S20642MD Documents
* Series 2 Row-Row Header Solder Brass Surface Mount, Right Angle Gold Polyphenylene Sulfide (PPS), Glass Filled 6 Position-Position Board to Board or Cable 0.218 (5.55mm) Height
M80-5S20642MD Overview
A Header package is included with it.Its mounting type is Surface Mount, Right Angle.It is part of the * Series of products.It is possible for the device to be used for the application -.There is no operating temperature for the device.
M80-5S20642MD Features
* series
M80-5S20642MD Applications
There are a lot of Harwin
M80-5S20642MD Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
