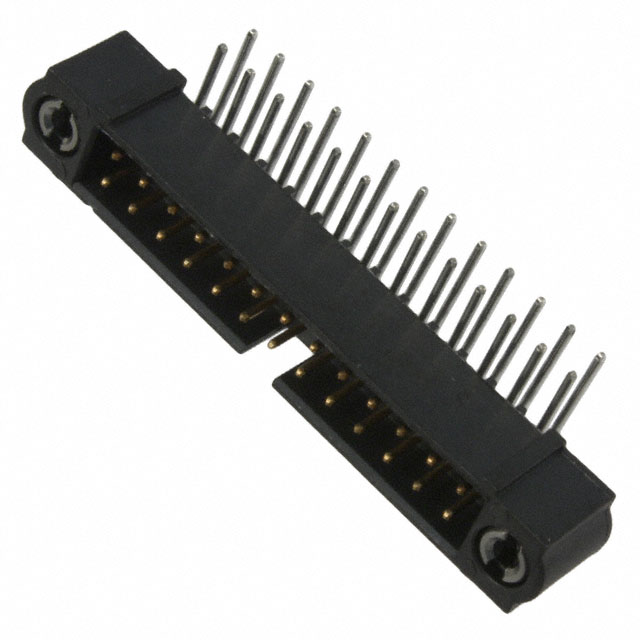

M80-5L12642MC

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Positions :

26

Row Spacing - Mating :

0.079 (2.00mm)

Style :

Board to Board or Cable

Body Length or Diameter :

1.417 inch

Insulation Height :

0.218 5.55mm

Feature :

Keying Slot, Mating Flange

Body Depth :

0.314 inch

Plating Thickness :

30μin

Factory Lead Time :

9 Weeks

Pitch - Mating :

0.079 2.00mm

JESD-609 Code :

e3

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Series :

Datamate J-Tek

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Current Rating :

3A

UL Flammability Code :

94V-0

Length - Termination :

0.118 inch

Contact Finish Thickness - Post :

118.1μin 3.00μm

Mating Contact Pitch :

0.079 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Number of Positions Loaded :

All

Contact Material :

Phosphor Bronze

Mounting Type :

Through Hole, Right Angle

Contact Type :

Male Pin

Published :

2009

Contact Finish - Post :

Tin

Durability :

500 Cycles

Number Of PCB Rows :

2

Termination :

Solder

Contact Length - Post :

0.118 3.00mm

Filter Feature :

No

Shrouding :

Shrouded - 4 Wall

Packaging :

Tube

Contact Finish - Mating :

Gold

HTS Code :

8536.69.40.40

Option :

GENERAL PURPOSE

Contact Resistance :

25mOhm

Pbfree Code :

yes

Material :

Glass

Housing Material :

Polyphenylene

Insulation Resistance :

100MOhm

Mixed Contacts :

No

Fastening Type :

Push-Turn Lock

Contact Shape :

Circular

Flammability Rating :

UL94 V-0

DIN Conformance :

No

Contact Gender :

Male

Number of Conductors :

ONE

Connector Type :

Header

Reference Standard :

UL

Number of Rows :

2

Insulation Color :

Black

Current Rating (Amps) :

2.2A

Lead Pitch :

2mm

Working Voltage :

120V

IEC Conformance :

No

Mount :

Through Hole

ECCN Code :

EAR99

Contact Finish Thickness - Mating :

29.5μin 0.75μm

REACH SVHC :

No SVHC
