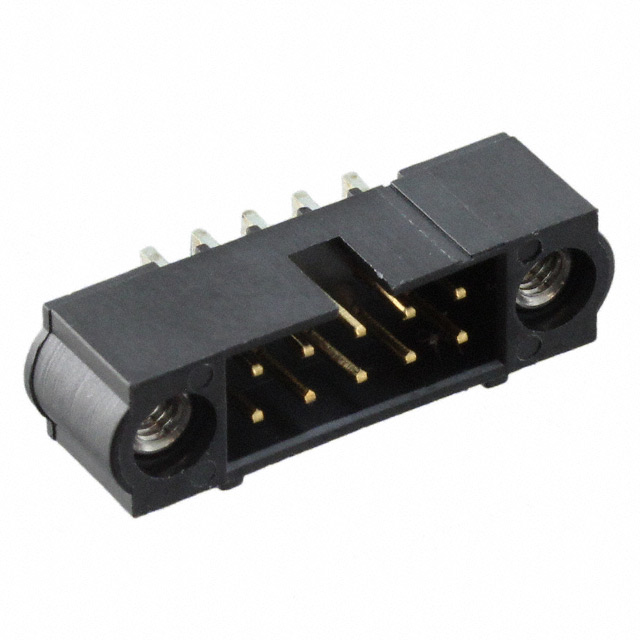

M80-5321042

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Termination :

Solder

Number of Positions Loaded :

All

ECCN Code :

EAR99

Voltage - Rated :

800V

Reliability :

COMMERCIAL

Mounting Type :

Surface Mount, Right Angle

Additional Feature :

RoHS Compliant

UL Flammability Code :

94V-0

Current Rating :

3A

Factory Lead Time :

17 Weeks

Mount :

Surface Mount

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Keying Slot, Mating Flange

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.079 (2.00mm)

Series :

Datamate J-Tek

Contact Material :

Brass

Body Length or Diameter :

0.787 inch

Pbfree Code :

yes

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Finish - Mating :

Gold

HTS Code :

8536.69.40.40

Body Depth :

0.398 inch

Number of Conductors :

ONE

Connector Type :

Header

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Radiation Hardening :

No

Current Rating (Amps) :

2.2A

REACH SVHC :

No SVHC

Shrouding :

Shrouded - 4 Wall

Total Number of Contacts :

10

Insulation Height :

0.218 5.55mm

JESD-609 Code :

e3

RoHS Status :

ROHS3 Compliant

Durability :

500 Cycles

Fastening Type :

Threaded

MIL Conformance :

No

Published :

2012

Contact Type :

Male Pin

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Packaging :

Tube

Contact Finish - Post :

Tin

IEC Conformance :

No

Contact Shape :

Circular

Contact Gender :

Male

Polarization Key :

POLARIZED HOUSING

Mating Contact Pitch :

0.079 inch

DIN Conformance :

No

Plating Thickness :

30μin

Orientation :

RIGHT ANGLE

Pitch - Mating :

0.079 2.00mm

Insulation Color :

Black

Number Of PCB Rows :

2

Style :

Board to Board or Cable

Mixed Contacts :

No

Reference Standard :

UL

Number of Positions :

10
