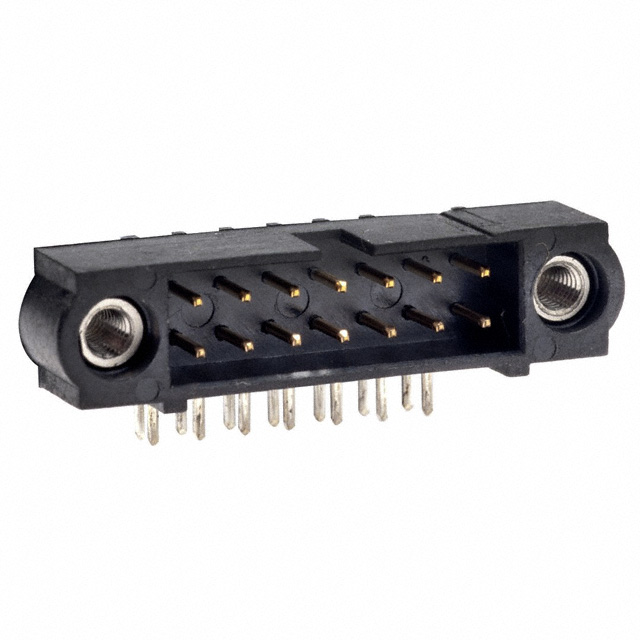

M80-5301442

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Gender :

Male

Mixed Contacts :

No

Contact Type :

Male Pin

Operating Temperature :

-55°C~125°C

Contact Shape :

Circular

Current Rating :

3A

Insulation Height :

0.218 5.55mm

Housing Material :

Polyphenylene

Width :

5.6mm

Contact Resistance :

25mOhm

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Packaging :

Tube

Length :

24mm

Connector Type :

Header

Option :

GENERAL PURPOSE

Durability :

500 Cycles

Contact Length - Post :

0.118 3.00mm

Contact Finish - Mating :

Gold

Mounting Type :

Through Hole, Right Angle

Housing Color :

Black

Current Rating (Amps) :

2.2A

ECCN Code :

EAR99

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Reliability :

COMMERCIAL

Number of Positions :

14

Flammability Rating :

UL94 V-0

Factory Lead Time :

9 Weeks

Orientation :

RIGHT ANGLE

Number of Conductors :

ONE

Height :

5.55mm

Max Voltage Rating (AC) :

120V

Max Current Rating :

3A

Series :

Datamate J-Tek

Published :

2003

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness - Post :

118.1μin 3.00μm

Insulation Resistance :

100MOhm

Lead Pitch :

2mm

Voltage - Rated :

800V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Style :

Board to Board or Cable

Fastening Type :

Threaded

JESD-609 Code :

e3

Number of Rows :

2

Number of Positions Loaded :

All

Shrouding :

Shrouded - 4 Wall

IEC Conformance :

No

Termination :

Solder

Radiation Hardening :

No

DIN Conformance :

No

Contact Material :

Phosphor Bronze

REACH SVHC :

No SVHC

MIL Conformance :

No

Row Spacing - Mating :

0.079 (2.00mm)

Voltage - Rated DC :

120V

Pitch - Mating :

0.079 2.00mm

Contact Finish - Post :

Tin

Feature :

Keying Slot, Mating Flange

Mount :

Through Hole

Depth :

8mm

UL Flammability Code :

94V-0

Mating Contact Pitch :

0.079 inch

Filter Feature :

No

HTS Code :

8536.69.40.40
