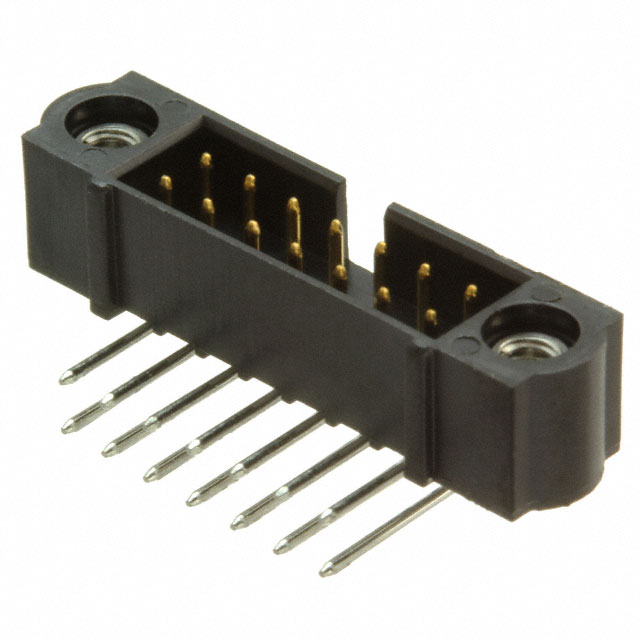

M80-5301422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mount :

Through Hole

Insulation Height :

0.218 5.55mm

Reference Standard :

UL

Style :

Board to Board or Cable

Depth :

8mm

Contact Type :

Male Pin

Voltage - Rated :

800V

Number of Positions Loaded :

All

Termination :

Solder

Factory Lead Time :

9 Weeks

Mounting Type :

Through Hole, Right Angle

Contact Material :

Phosphor Bronze

Reach Compliance Code :

not_compliant

Contact Finish Thickness - Mating :

29.5μin 0.75μm

MIL Conformance :

No

Contact Finish Thickness - Post :

118.1μin 3.00μm

HTS Code :

8536.69.40.40

Published :

2013

Number of Conductors :

ONE

Housing Color :

Black

Reliability :

COMMERCIAL

Pbfree Code :

No

Housing Material :

Polyphenylene

UL Flammability Code :

94V-0

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Contact Gender :

Male

Length :

24mm

Contact Shape :

Circular

Operating Temperature :

-55°C~125°C

Contact Finish - Mating :

Gold

Row Spacing - Mating :

0.079 (2.00mm)

DIN Conformance :

No

RoHS Status :

Non-RoHS Compliant

ECCN Code :

EAR99

Pitch - Mating :

0.079 2.00mm

Max Current Rating :

3A

Mixed Contacts :

No

Filter Feature :

No

Max Voltage Rating (AC) :

120V

Orientation :

RIGHT ANGLE

Fastening Type :

Threaded

Durability :

500 Cycles

Contact Finish - Post :

Tin-Lead

Shrouding :

Shrouded - 4 Wall

Contact Resistance :

25mOhm

Insulation Resistance :

100000000Ohm

Series :

Datamate J-Tek

JESD-609 Code :

e0

IEC Conformance :

No

Max Voltage Rating (DC) :

120V

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Current Rating (Amps) :

2.2A

Option :

GENERAL PURPOSE

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Contact Length - Post :

0.118 3.00mm

Feature :

Keying Slot, Mating Flange

Mating Contact Pitch :

0.079 inch

Number of Positions :

14
