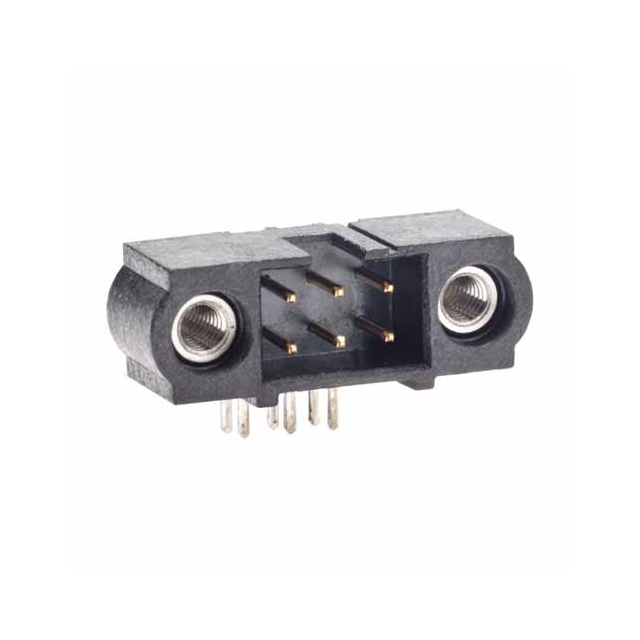

M80-5300622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

JESD-609 Code :

e0

Number of Positions Loaded :

All

Max Voltage Rating (AC) :

120V

Reach Compliance Code :

not_compliant

Feature :

Keying Slot, Mating Flange

DIN Conformance :

No

Style :

Board to Board or Cable

Depth :

8mm

Filter Feature :

No

Housing Color :

Black

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Type :

Male Pin

Row Spacing - Mating :

0.079 (2.00mm)

UL Flammability Code :

94V-0

Insulation Height :

0.218 5.55mm

Factory Lead Time :

9 Weeks

Insulation Resistance :

100000000Ohm

Mating Contact Pitch :

0.079 inch

Max Current Rating :

3A

Housing Material :

Polyphenylene

Packaging :

Tube

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Gender :

Male

Durability :

500 Cycles

Voltage - Rated :

800V

Shrouding :

Shrouded - 4 Wall

Contact Resistance :

25mOhm

Contact Finish - Mating :

Gold

Reference Standard :

UL

Connector Type :

Header

Termination :

Solder

Contact Material :

Phosphor Bronze

Length :

16mm

Contact Finish - Post :

Tin-Lead

Contact Length - Post :

0.118 3.00mm

MIL Conformance :

No

Mixed Contacts :

No

Contact Shape :

Circular

Max Voltage Rating (DC) :

120V

IEC Conformance :

No

Series :

Datamate J-Tek

Orientation :

RIGHT ANGLE

Published :

2013

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-55°C~125°C

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Pbfree Code :

No

Number of Positions :

6

RoHS Status :

Non-RoHS Compliant

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Pitch - Mating :

0.079 2.00mm

Number of Rows :

2

ECCN Code :

EAR99

Current Rating (Amps) :

2.2A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Threaded

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole
