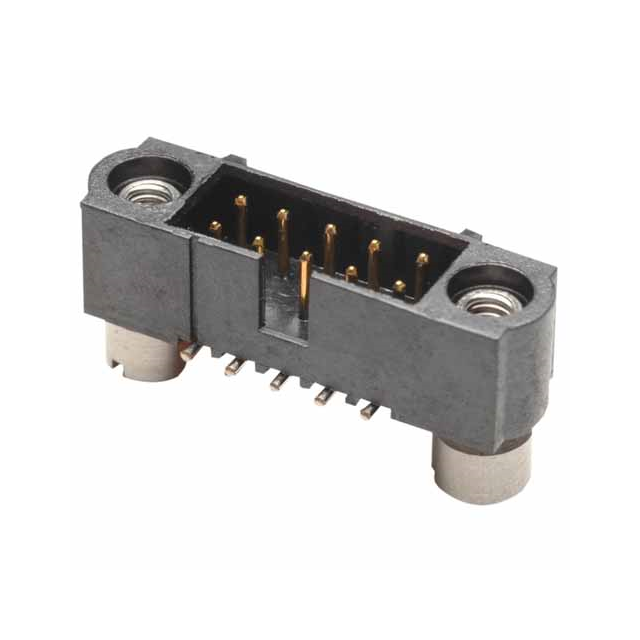

M80-5131822

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Stack Height (Mating) :

7.55mm 7.95mm 10.1mm 11.1mm 13.65mm 15.1mm

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

118.1μin 3.00μm

Operating Temperature :

-55°C~125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Durability :

500 Cycles

JESD-609 Code :

e0

Current Rating (Amps) :

2.2A

Option :

GENERAL PURPOSE

Mount :

Surface Mount

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Termination :

Solder

Total Number of Contacts :

18

UL Flammability Code :

94V-0

MIL Conformance :

No

Plating Thickness :

30μin

Number of Positions :

18

Connector Type :

Header

HTS Code :

8536.69.40.40

RoHS Status :

Non-RoHS Compliant

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Published :

2013

Pbfree Code :

No

Weight :

1.652012g

Pitch - Mating :

0.079 2.00mm

Number of Rows :

2

DIN Conformance :

No

Number Of PCB Rows :

2

Factory Lead Time :

8 Weeks

Number of Positions Loaded :

All

Mating Contact Pitch :

0.079 inch

Contact Type :

Male Pin

Insulation Resistance :

100000000Ohm

Series :

Datamate J-Tek

Contact Shape :

Circular

Reach Compliance Code :

not_compliant

Reference Standard :

UL

Contact Gender :

Male

Mixed Contacts :

No

Insulation Height :

0.234 5.95mm

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Voltage - Rated :

800V

Reliability :

COMMERCIAL

Filter Feature :

No

Insulation Color :

Black

Style :

Board to Board or Cable

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin-Lead

Polarization Key :

POLARIZED HOUSING

Fastening Type :

Threaded

IEC Conformance :

No

Additional Feature :

PANEL MOUNTABLE

Contact Material :

Phosphor Bronze

ECCN Code :

EAR99

Packaging :

Tube

Row Spacing - Mating :

0.079 (2.00mm)

Feature :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
