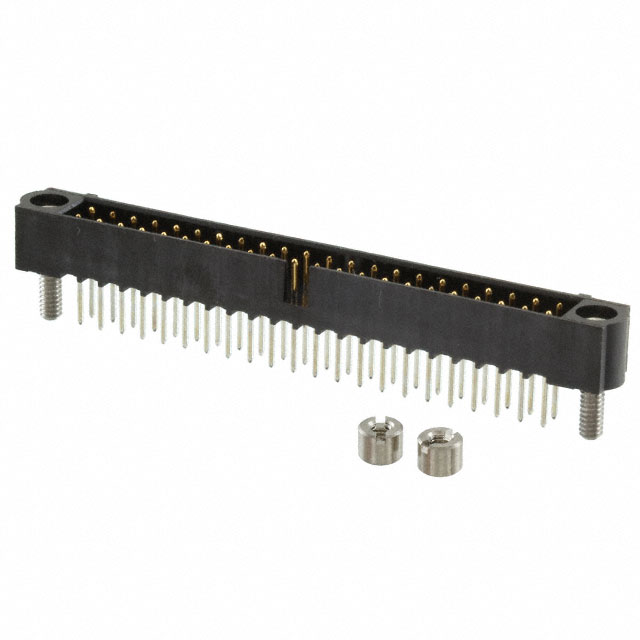

M80-5114422
Or copy the link below:
- Mfr.Part #
- M80-5114422
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 44POS 2MM
- Stock
- 305
- In Stock ：
- 305
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- IEC Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- UL Flammability Code :
- 94V-0
- Stack Height (Mating) :
- 7.3mm 7.7mm 9.75mm 10.75mm 13.35mm 14.75mm
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Current Rating (Amps) :
- 2.2A
- Style :
- Board to Board or Cable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Length - Termination :
- 0.173 inch
- Plating Thickness :
- 30μin
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Contact Gender :
- Male
- Voltage - Rated :
- 800V
- Number of Rows :
- 2
- Pbfree Code :
- No
- Termination :
- Solder
- Operating Temperature :
- -55°C~125°C
- Number of Conductors :
- ONE
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Contact Length - Post :
- 0.173 4.40mm
- DIN Conformance :
- No
- Insulation Color :
- Black
- MIL Conformance :
- No
- Number Of PCB Rows :
- 2
- Contact Finish - Post :
- Tin-Lead
- Fastening Type :
- Threaded
- Durability :
- 500 Cycles
- Mixed Contacts :
- No
- Additional Feature :
- PANEL MOUNTABLE
- Factory Lead Time :
- 9 Weeks
- Insulation Height :
- 0.220 5.60mm
- Mount :
- Through Hole
- Polarization Key :
- POLARIZED HOUSING
- Reference Standard :
- UL
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- HTS Code :
- 8536.69.40.40
- Contact Material :
- Phosphor Bronze
- Connector Type :
- Header
- Pitch - Mating :
- 0.079 2.00mm
- ECCN Code :
- EAR99
- Insulation Resistance :
- 100000000Ohm
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Reach Compliance Code :
- not_compliant
- Contact Shape :
- Circular
- PCB Contact Pattern :
- RECTANGULAR
- Mating Contact Pitch :
- 0.079 inch
- Reliability :
- COMMERCIAL
- Option :
- GENERAL PURPOSE
- Published :
- 2012
- Series :
- Datamate J-Tek
- Filter Feature :
- No
- JESD-609 Code :
- e0
- Number of Positions :
- 44
- Datasheets
- M80-5114422
M80-5114422 Documents
Datamate J-Tek Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polyphenylene Sulfide (PPS), Glass Filled 44-Position Board to Board or Cable 0.220 5.60mm Height
M80-5114422 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Datamate J-Tek Series.To name a few, there is also PANEL MOUNTABLE.There are a number of advantages to its Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware feature.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
M80-5114422 Features
Datamate J-Tek series
M80-5114422 Applications
There are a lot of Harwin Inc.
M80-5114422 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
